PRODUCT PARAMETERS:

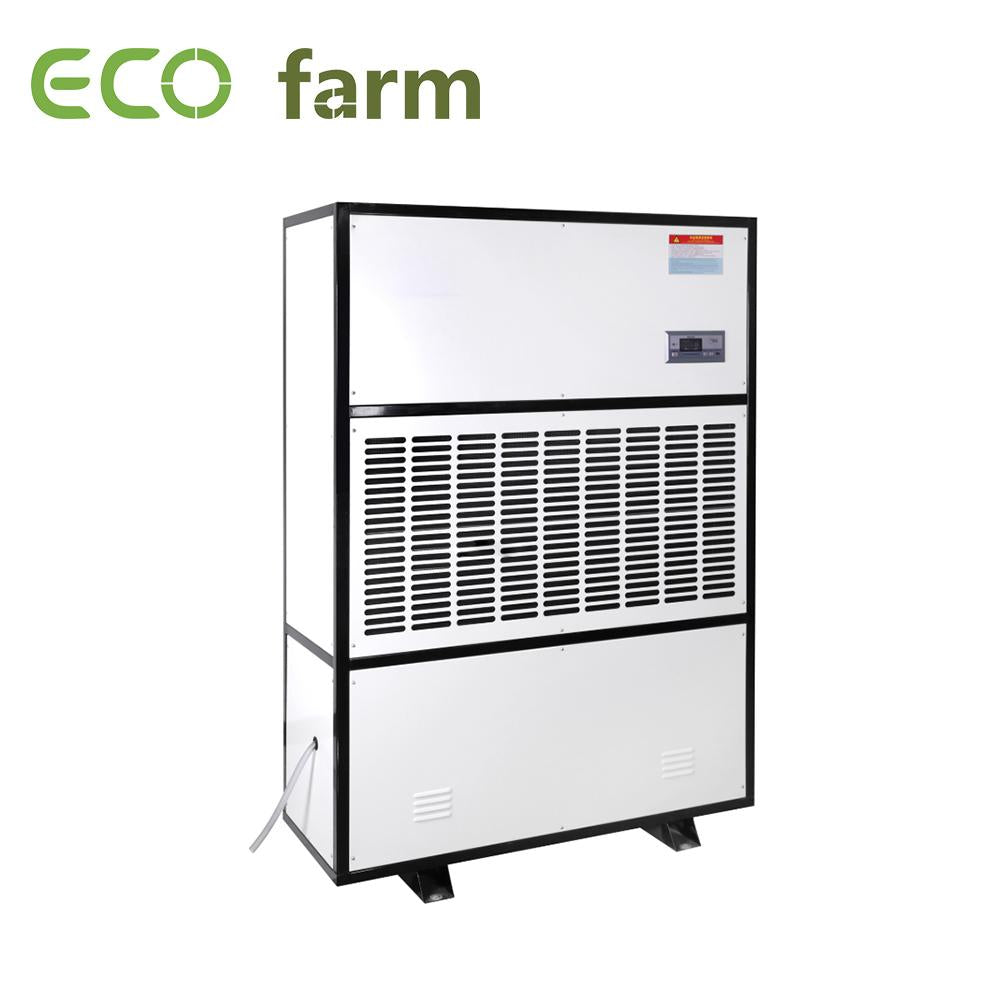

| Product Name | ECO Farm Greenhouse Dehumidifier |
| Maximum dehumidification | 20kg/h |
| Applying Area(with three meters height) | 450~600M² (height:2.6m) |
| Airflow | 3600 CFM |
| Circulating air flow | 5600m³/ h |
| Power | 7.2kw |
| Size | 1240X520X1700 mm |
| Weight | 245kg |
| Power | 380V-50HZ |
| Defrost method | Automatic |
| Outer packing | wooden case |
| Low noise | <66 dB |
| Maximum input current | 26.3A |
| Rated input power | 10.0kW |
PRODUCT FUNCTIONS:
Product model AMCF-15S
Dehumidification capacity: 15kg/h
Rated power: 7.2KW
Power supply: 380V-50HZ
Application area: 400-550㎡
Floor height: 2.6m
Control method: fully automatic
Circulating air volume: 4000m3/h
Use environment temperature: 5℃~38℃
Humidity control range: 30%-90%RH
Drainage method: hose drainage
Noise level: ≤70dB
Refrigerant: R22 (environmentally friendly refrigerant is optional)
Specification (LxWxH mm): 1320×550×1750
Net weight (kg): 260kg
Product features:
1. Automatic frosting function
2. Timing shutdown function
3. Accurate control of 1% humidity
4. Ambient humidity LCD display function, humidity time automatic control
5. Sensor fault indication function
6. Use international pin brand compressor, automatic delay protection, compressor three minutes delay protection
7. Hose connection, continuous drainage
3. Application scope:
Application scope of dehumidifier:
Industrial dehumidifiers are widely used in valuables warehouses, pharmaceuticals, food, electronics, leather, footwear, furniture, printing products, chemicals, tobacco and many other industries. The article avoids major losses caused by dampness and mildew. The product has a large applicable area and wide range, especially suitable for large-scale workshops and warehouses.
ECO Farm industrial dehumidifier has strong dehumidification, especially suitable for drying and dehumidifying paper boxes, cartons, printed products, furniture floors, medicinal villages, preserved fruits, aquatic products, metal models, etc., powerfully extract moisture from materials, fast drying, and efficient Energy saving.
The principle of industrial dehumidifier:
The industrial dehumidifier is composed of a compressor, a heat exchanger, a fan, a water container, a casing and a controller. The principle of an industrial dehumidifier can be simply understood as the fan draws moist air into the machine and passes through the heat exchanger. At this time, the moisture in the air condenses into droplets and becomes dry air and exits the machine. This cycle reduces the indoor humidity. .
1. External circulation of dehumidifier
Under normal power-on → the operation of the fan → the moist air is sucked in from the air inlet → through the evaporator, the evaporator adsorbs the moisture in the air on the aluminum sheet → becomes dry air → passes through the condenser to dissipate heat → from the air outlet Blow out.
2. The internal circulation of the dehumidifier
Through the operation of the compressor → discharge high-temperature and high-pressure gas through the exhaust port → enter the condenser for cooling → become a low-temperature and high-pressure gas → pass through the capillary tube → become a low-temperature and low-pressure liquid → evaporate through the evaporator to absorb heat → return to the compressor to become The low-temperature and low-pressure gas circulates in this way.
Dehumidification capacity: 15kg/h
Rated power: 7.2KW
Power supply: 380V-50HZ
Application area: 400-550㎡
Floor height: 2.6m
Control method: fully automatic
Circulating air volume: 4000m3/h
Use environment temperature: 5℃~38℃
Humidity control range: 30%-90%RH
Drainage method: hose drainage
Noise level: ≤70dB
Refrigerant: R22 (environmentally friendly refrigerant is optional)
Specification (LxWxH mm): 1320×550×1750
Net weight (kg): 260kg
Product features:
1. Automatic frosting function
2. Timing shutdown function
3. Accurate control of 1% humidity
4. Ambient humidity LCD display function, humidity time automatic control
5. Sensor fault indication function
6. Use international pin brand compressor, automatic delay protection, compressor three minutes delay protection
7. Hose connection, continuous drainage
3. Application scope:
Application scope of dehumidifier:
Industrial dehumidifiers are widely used in valuables warehouses, pharmaceuticals, food, electronics, leather, footwear, furniture, printing products, chemicals, tobacco and many other industries. The article avoids major losses caused by dampness and mildew. The product has a large applicable area and wide range, especially suitable for large-scale workshops and warehouses.
ECO Farm industrial dehumidifier has strong dehumidification, especially suitable for drying and dehumidifying paper boxes, cartons, printed products, furniture floors, medicinal villages, preserved fruits, aquatic products, metal models, etc., powerfully extract moisture from materials, fast drying, and efficient Energy saving.
The principle of industrial dehumidifier:
The industrial dehumidifier is composed of a compressor, a heat exchanger, a fan, a water container, a casing and a controller. The principle of an industrial dehumidifier can be simply understood as the fan draws moist air into the machine and passes through the heat exchanger. At this time, the moisture in the air condenses into droplets and becomes dry air and exits the machine. This cycle reduces the indoor humidity. .
1. External circulation of dehumidifier
Under normal power-on → the operation of the fan → the moist air is sucked in from the air inlet → through the evaporator, the evaporator adsorbs the moisture in the air on the aluminum sheet → becomes dry air → passes through the condenser to dissipate heat → from the air outlet Blow out.
2. The internal circulation of the dehumidifier
Through the operation of the compressor → discharge high-temperature and high-pressure gas through the exhaust port → enter the condenser for cooling → become a low-temperature and high-pressure gas → pass through the capillary tube → become a low-temperature and low-pressure liquid → evaporate through the evaporator to absorb heat → return to the compressor to become The low-temperature and low-pressure gas circulates in this way.
