Products Description

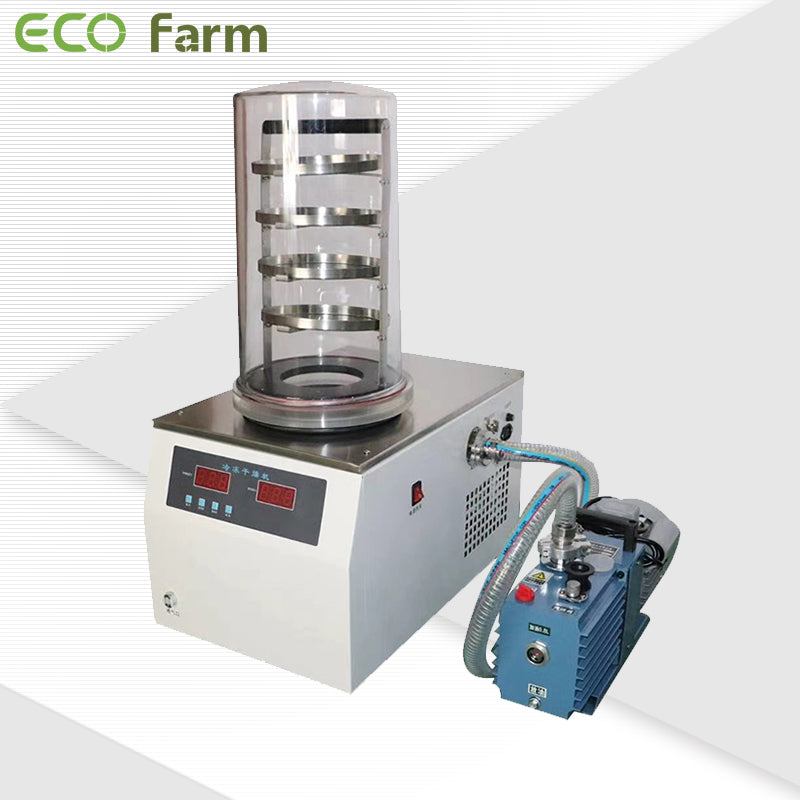

The Freeze Dryer is suitable for freeze drying test of laboratory biomedical samples.
The table top type and vertical type Freeze Dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Main features:
● Desktop design, compact, small footprint.
● Beautiful appearance, ergonomic design, and convenient operation.
● Original German Secop hermetic compressor, with high efficiency and reliability, and low noise.
● The cold trap has a large opening with sample pre-freezing function.
● The cold trap is made of all stainless steel, there is no coil in the cold trap, which is smooth and corrosion-resistant.
● Design a diversion tube to increase the effective area of the cold trap and quickly freeze-dry.
● The original inflation valve can be filled with dry nitrogen or inert gas.
● Transparent bell-type drying room, safe and intuitive.
● International standard vacuum interface, can be used in conjunction with a variety of vacuum pumps.
● Digital display temperature and vacuum degree.
● Sample temperature display (optional).

Product parameters
Name and Model
FD-1A-50 Gland type Vacuum Freeze Dryer
Freeze Drying Area
0.025 m2/layer
Cold trap temperature
-50 (optional -80) ℃
Vacuum
<10 Pa
Water-capture capacity
3~4 Kg/24h
Material tray
Diameter 180 mm
Tray number
3 layer
Whole power
750 W
Main frame size
460*556*(720+430)(mm)
Main frame weight
40 Kg
Liquid capacity
0.7 L (thickness:10mm)

Penicillin bottle
Penicillin bottle diameter12mm:560pcs
Penicillin bottle diameter 16mm:285pcS
Penicillin bottle diameter 22mm:165pcs
Detailed Images
