Characteristic
1. Lightweight aluminum body
2. Easy to assemble
3. 277V available
4. Distance adjustable
5. Protection system built in
6. UL approval material.
Advantage
1. Higher thermal conductivity & whole body as heatsink
2. excellent for heat management
3. Higher light intensity
4. Higher luminous efficiency
5. Target to the point area
6. higher usage of light.

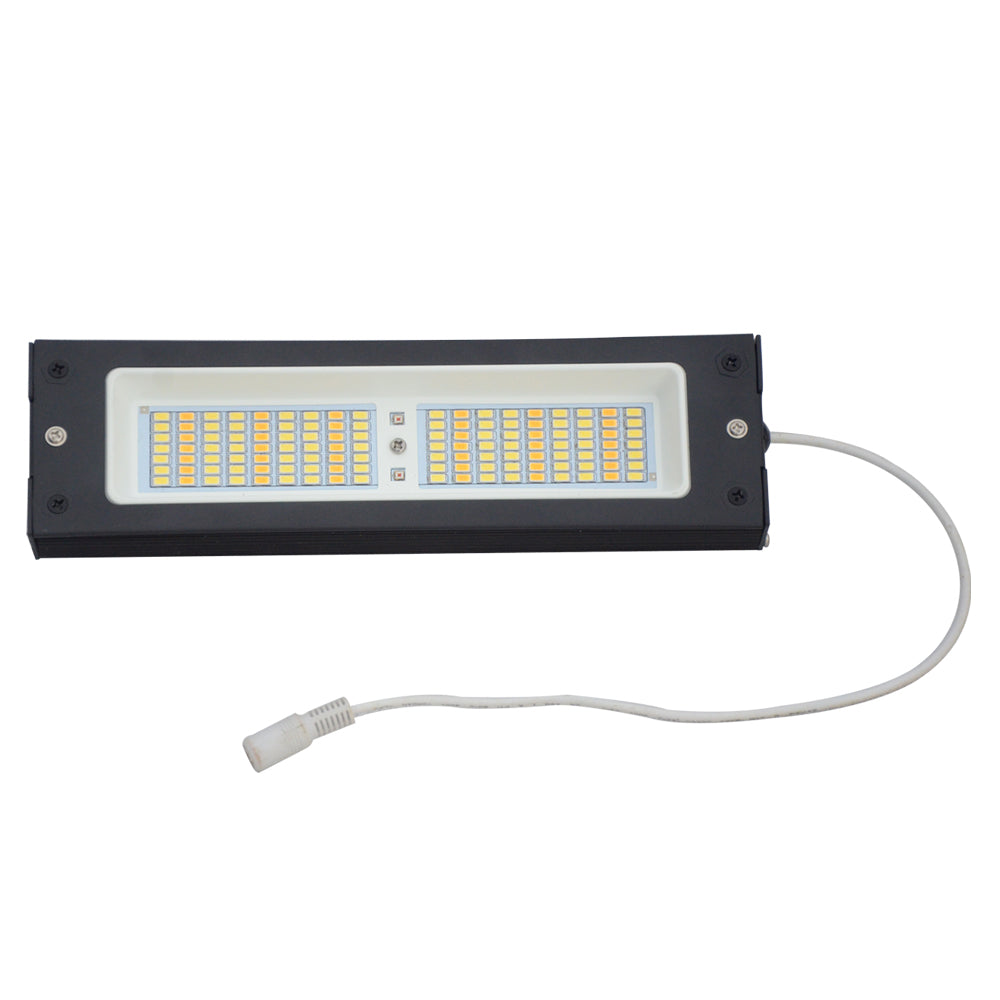

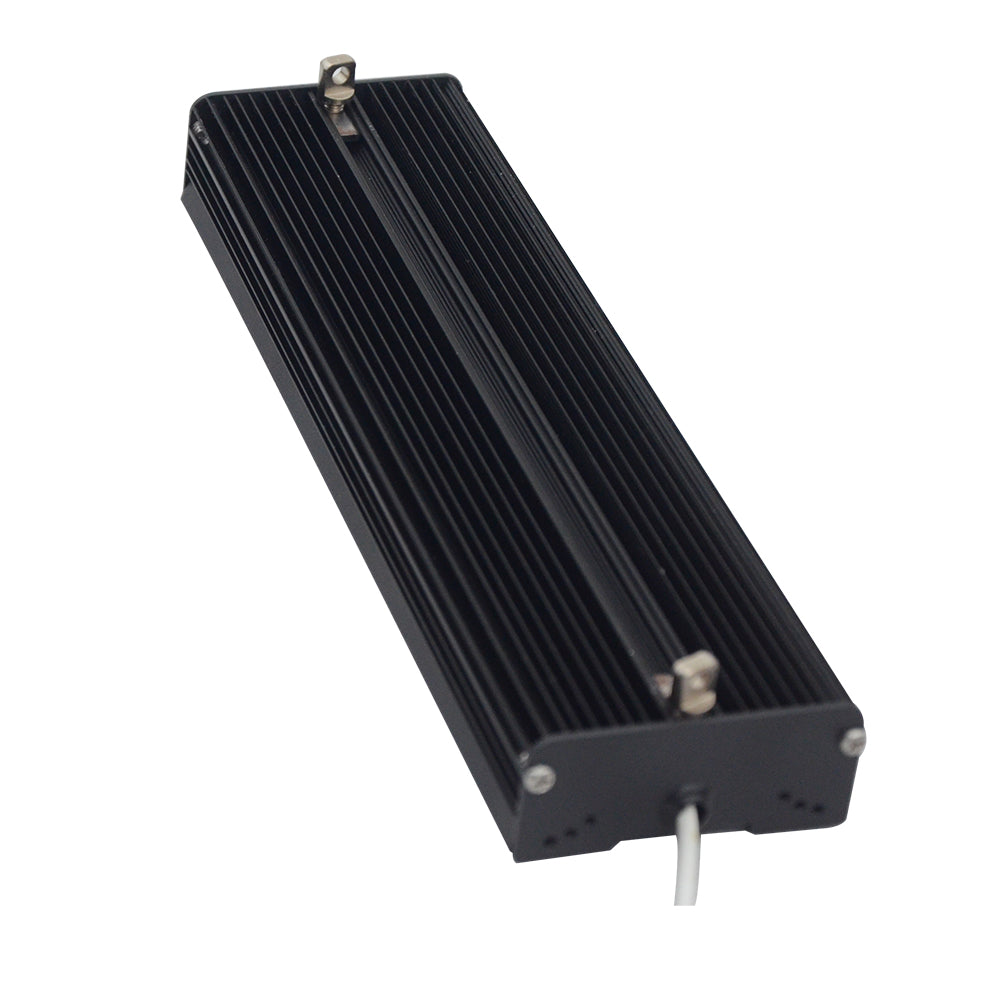

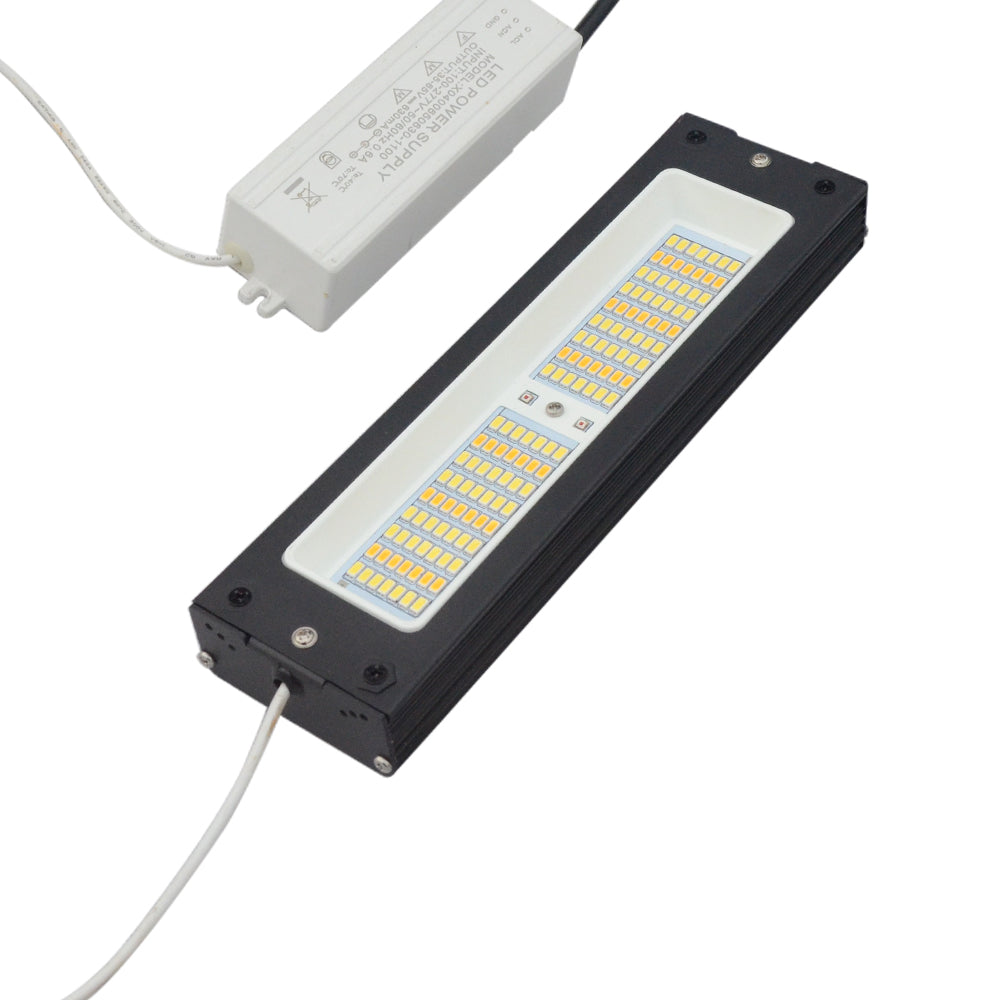

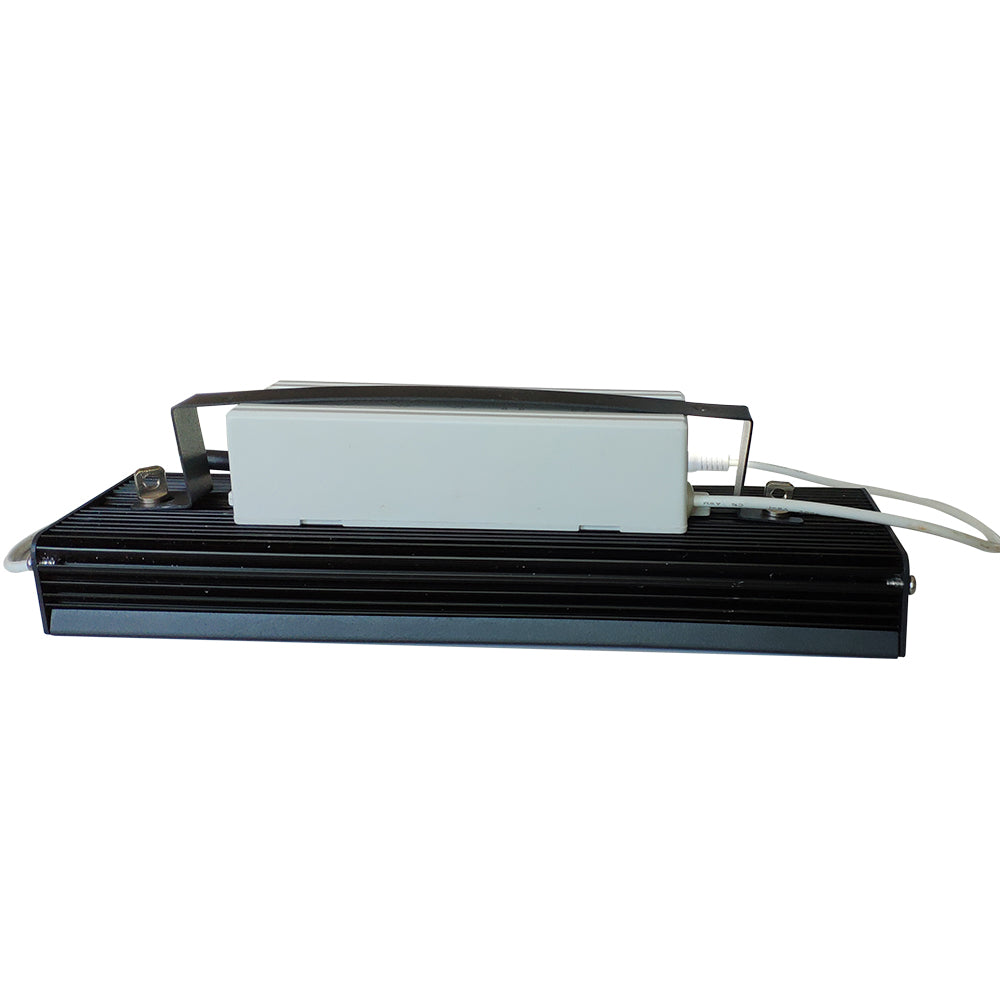

35W LED Grow Light Bar
Spectrum
- 280 ~ 315nm The shape and the physiological processes of little effect.
- 315 ~ 400nnm Chlorophyll absorbs less, influence light cycle effect, prevent stem elongation.
- 400 ~ 520nm(Blue) Chlorophyll and carotenoids absorb the largest percentage, the biggest influence on photosynthesis.
- 520 ~ 610nm Pigment absorption rate is not high.
- 610 ~ 720nm(Red) Chlorophyll absorption rate is low, for photosynthesis and light cycle effect have notable effect.
- 720 ~ 1000nm Absorption rate is low, stimulate cell extended, influencing flowering and seed germination In a word, the red,blue,orange is main wavelength/color energy for plants' photosynthesis.
70W Splicable LED Grow Light Bar

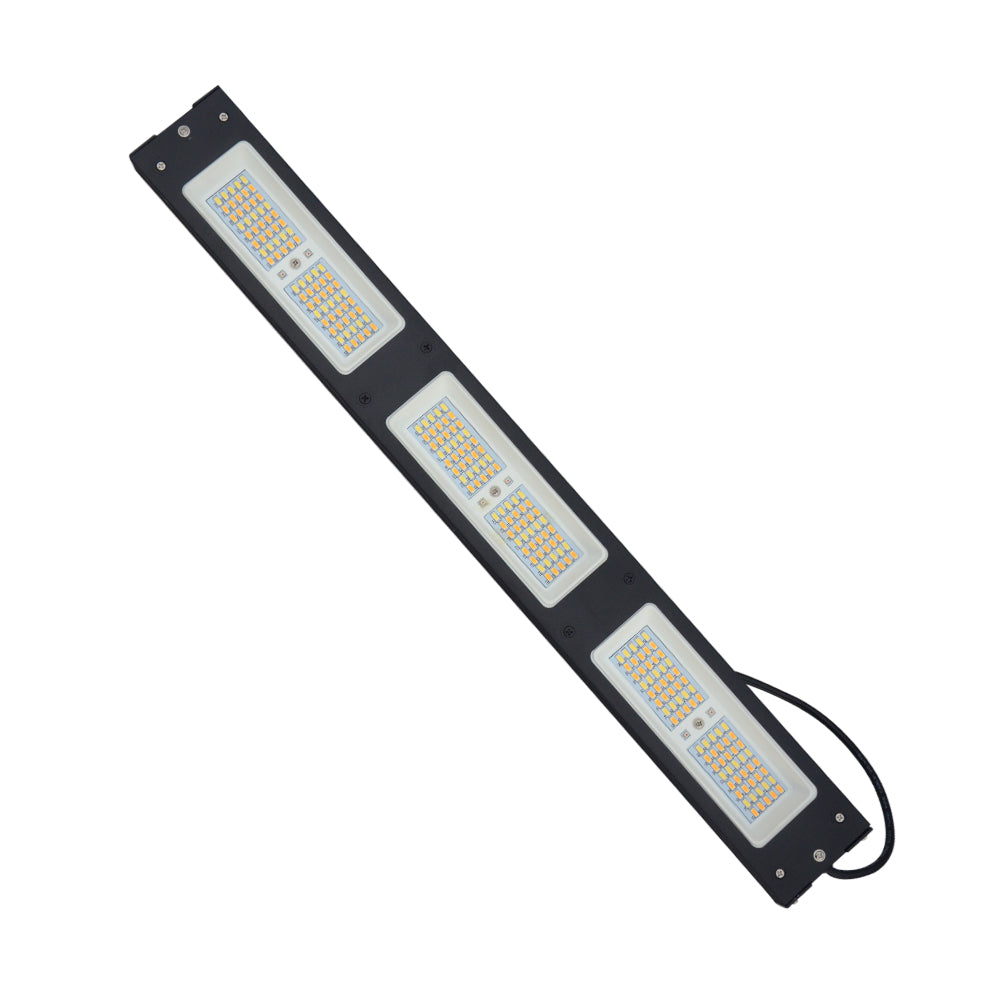

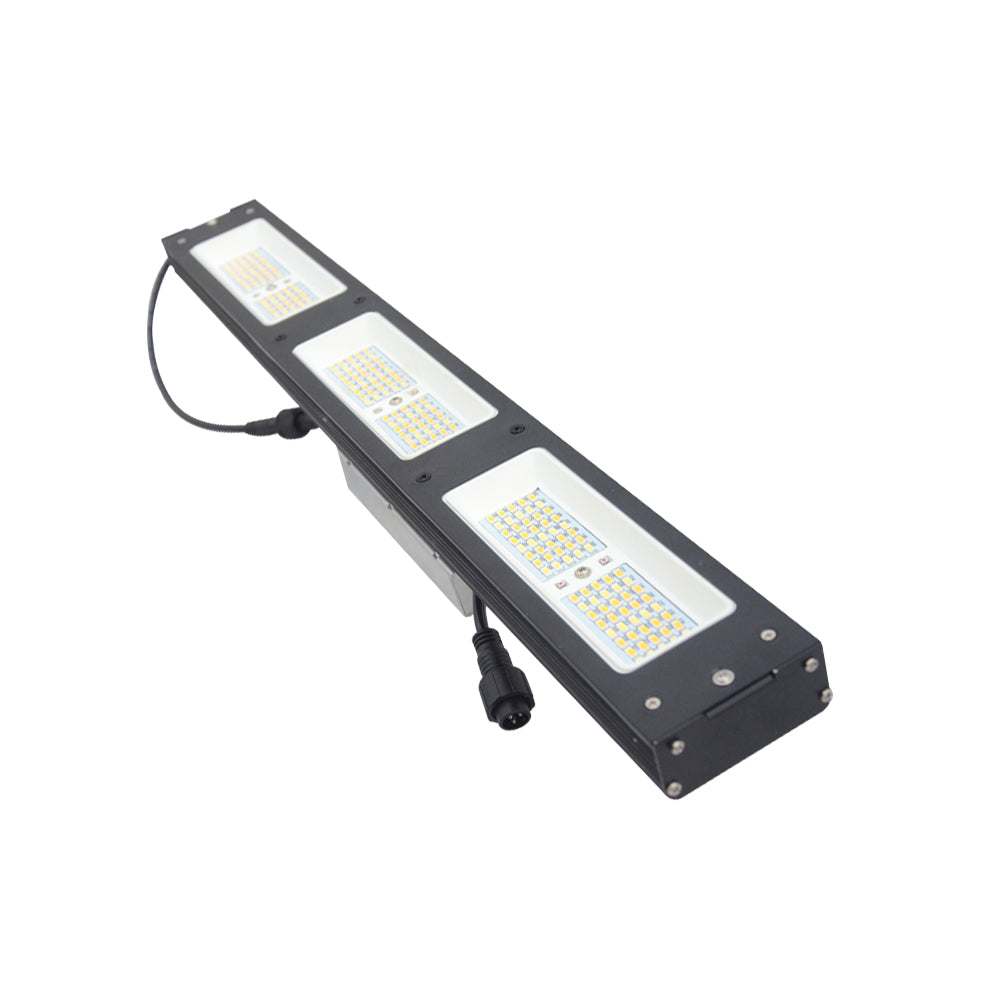

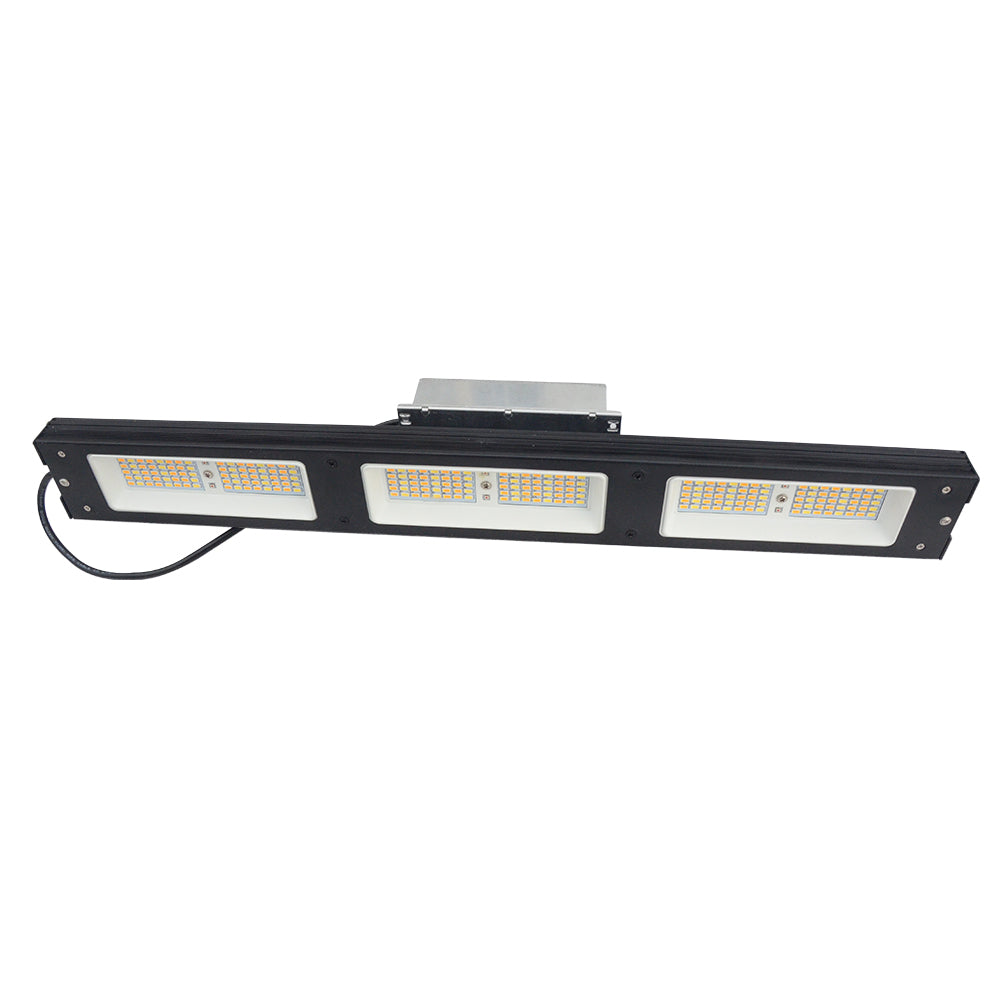

80W Splicable LED Grow Light Bar
| Lamp Beads Power | 0.5W | Number of beads | 480pcs |
| Dimensions | 1160*70*30mm | Power | 84W@110v 83w@220v |
| Net weight | 2.74kg | PPFD | 288/30cm |
| Input voltage | 85-265V | PF | 0.99 |
| Working current | 630mA | Lifespan | 50000hours |
| Work Frequency | 50-60hz | PPF | 2.06μmol/S/W |
| Work Temperature | -20°C~40°C | Irradiation Area | 1.5㎡/1m |
| Inner box packaging | 1240*75*82mm | Gross weight | 5.36kg |
| Outer box packaging | 1250*243*186mm | Gross weight | 32.5kg/6pcs |

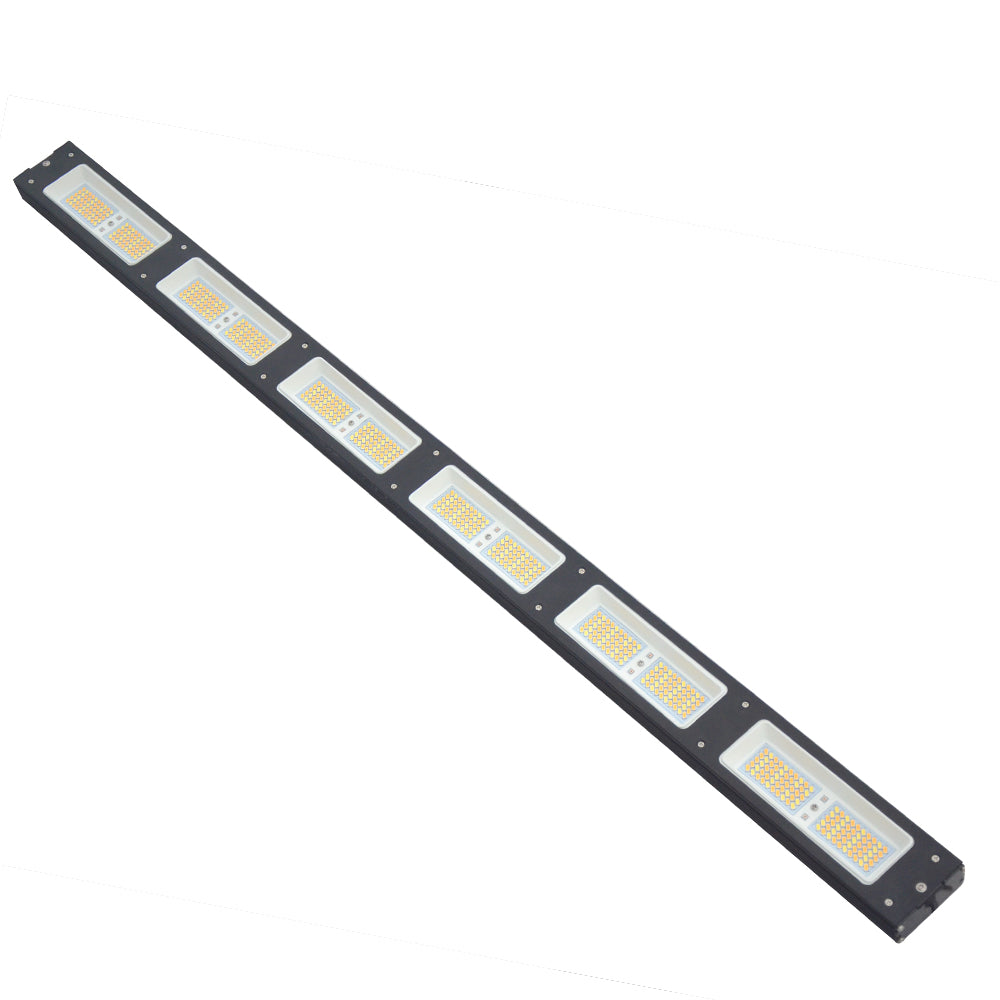

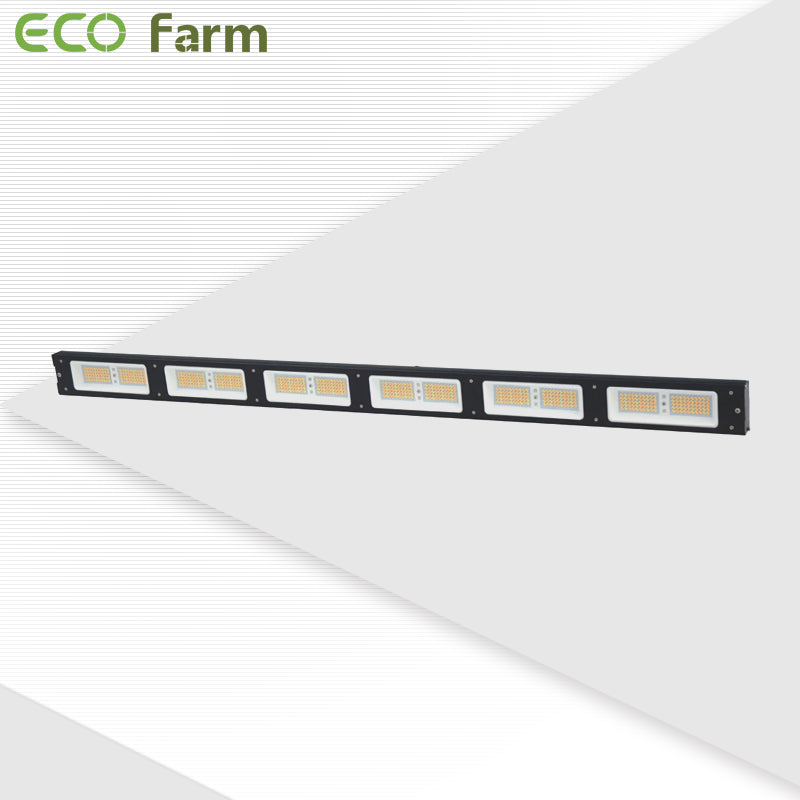

140W Splicable LED Grow Light Bar
| Lamp Beads Power | 0.5W | Number of beads | 768pcs |
| Dimensions | 1160*38*70mm | Power | 152W@110v 147w@220v |
| Net weight | 2.74KG | PPFD | 448/30cm |
| Input voltage | 85-265V | PF | 0.99 |
| Working current | 630mA | Lifespan | 50000hours |
| Work Frequency | 50-60hz | PPF | 1.90μmol/S/W |
| Work Temperature | -20°C~40°C | Irradiation Area | 0.75㎡/0.3m 1.21㎡/60m |
| Inner box packaging | 1160*75*100mm | Gross weight | 5.36KG |
| Outer box packaging | 1170*168*222mm | Gross weight | 22kg/4pcs |
