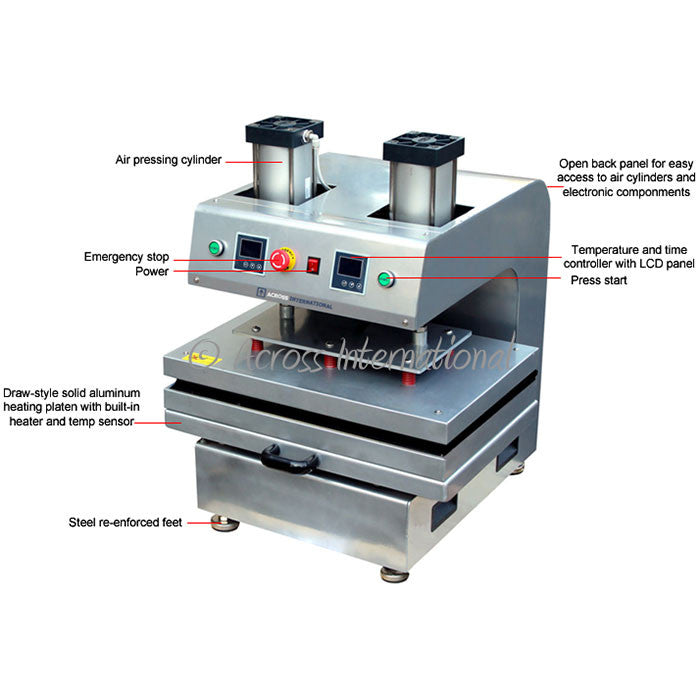

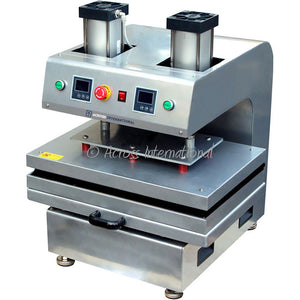

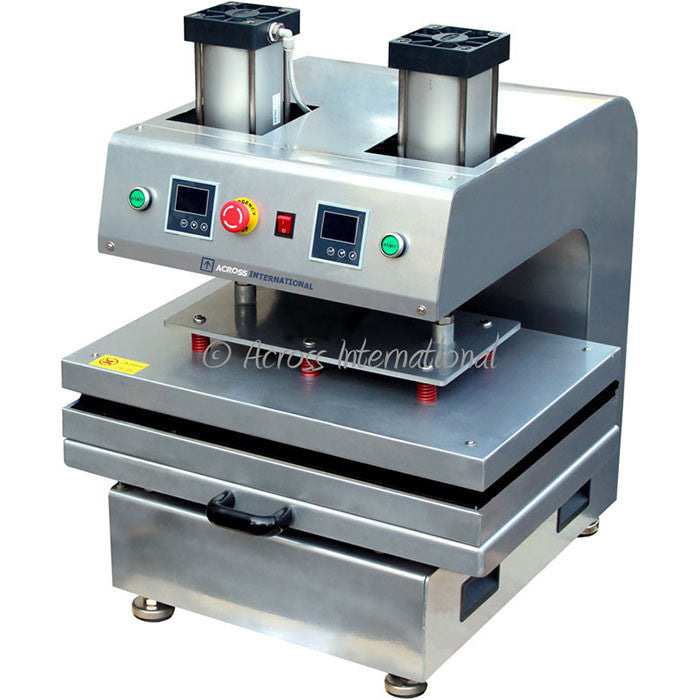

Ai AirPress 24 x 16″ draw-style pneumatic heat press allows for the bottom platen to be pulled out (similar to a drawer), away from the heat. The press features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the unit is pressed shut and provides an audible alarm once the predetermined amount of time has elapsed.

Features

Brand Across International
SKU AIRPRESS-2416
Weight (lb.) 190
Prop 65 No
Length (in.) 35
Width (in.) 35
Height (in.) 35
Warranty 90 Days
UL Listed No
Rosin Press Type Pneumatic
Plate Size 24" x 16"
Plate Material Type PTFE coated aluminum
Temperature Range Ambient to 480 F (250 C)
Temperature Control PID controlled digital controller with LCD panel
Max. Pressure 2,155 Lbs
Pressure Control Adjustable pressure
Press Time Range 1 to 999 seconds
Adjustable Tilt Position No
Needs Air Compressor Required
Amps 30A
Voltage 110 Volt
Exact Watts 3200 Watts
Power Cord(s) Included 120 Volt
Power Cord Length 8 ft.

Recommended parts (not included)

  • 1/2" tube compression connection and 12mm tubing
  • 33 gallon 1.7 HP oil-free vertical air compressor 165 max psi
  • Surge protected outlet
