Commercial Growers! Maximize your yields & profits with ChilLED LED Grow Lights. Switch from HPS to ChilLED and increase your yields & profits 30 - 70+% without adding any additional heat, energy costs or cooling requirements.
Results- Market-leading efficiency combined with our tunable Yield Max spectrum equals unmatched performance.
Quality- Highest build & component quality - never sacrificed for profits. ChilLED grow lights are built to last.
Versatility- Retrofit into your environment with ease. Hands down, ChilLED lights are the most versatile on the market.
Top Features
-

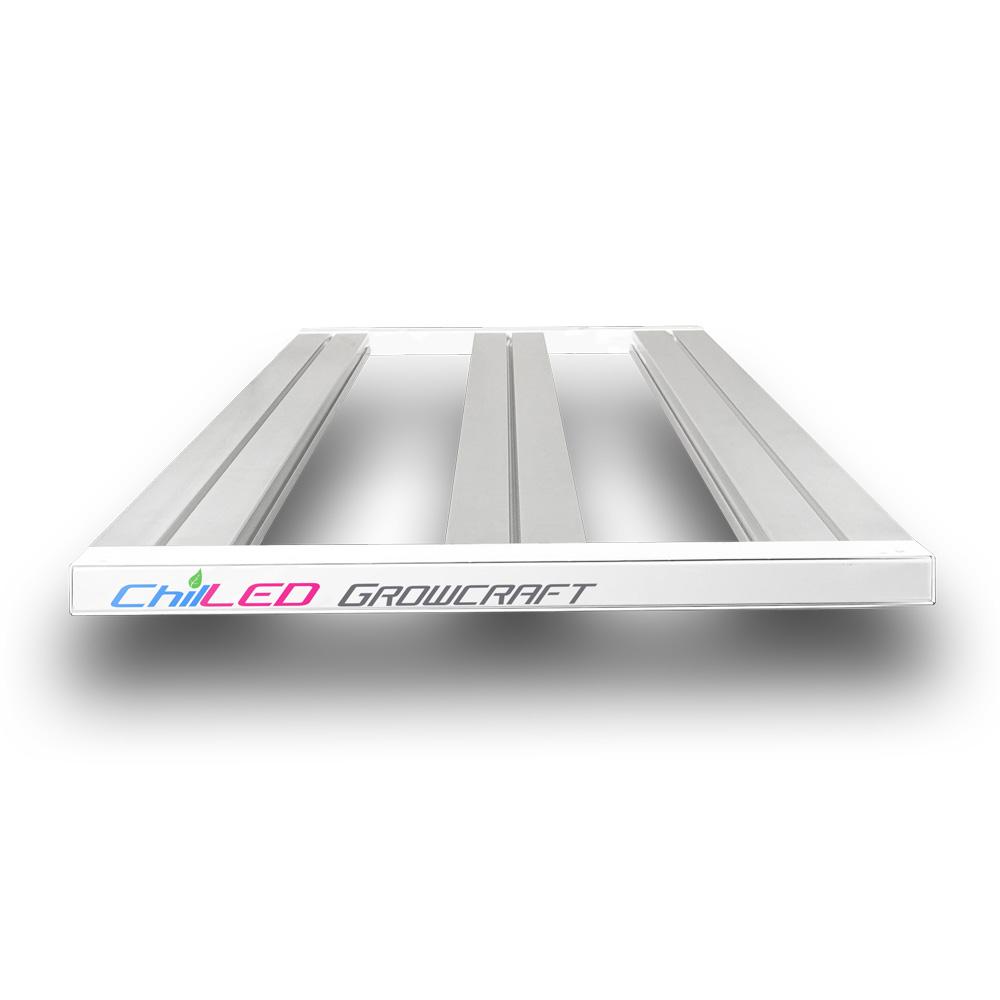

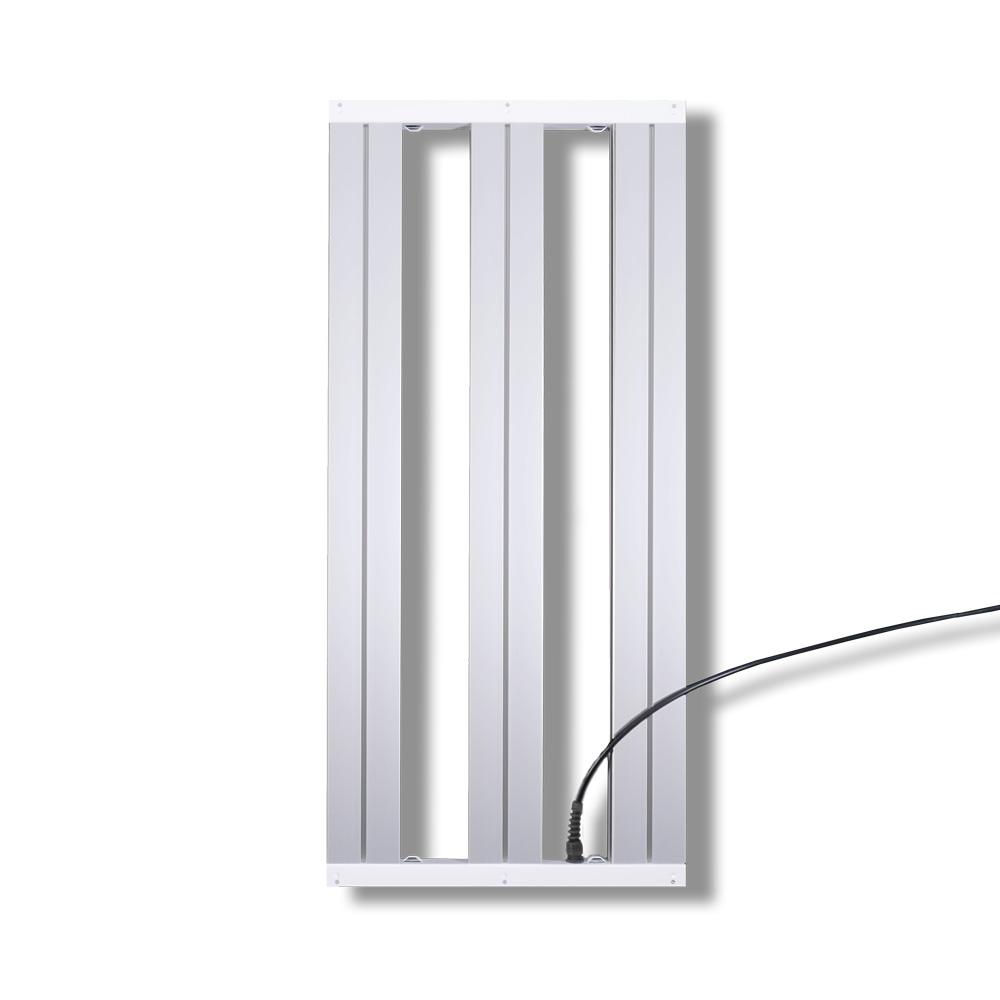

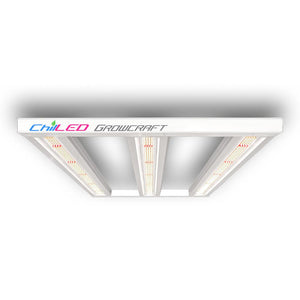

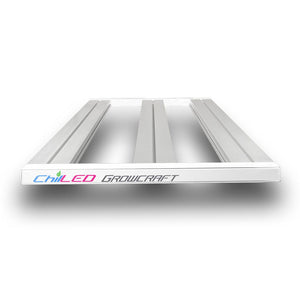

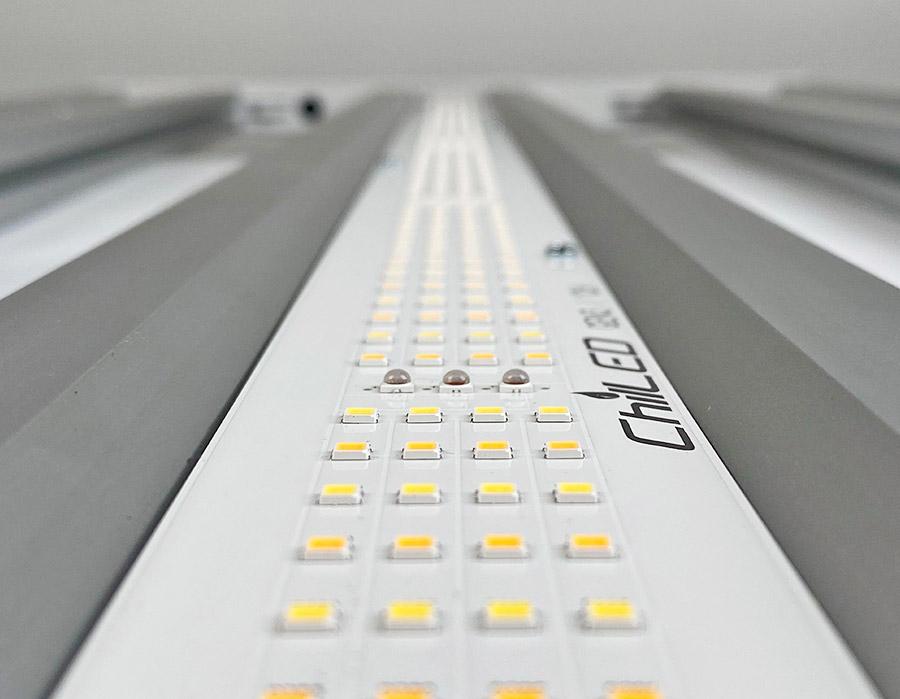

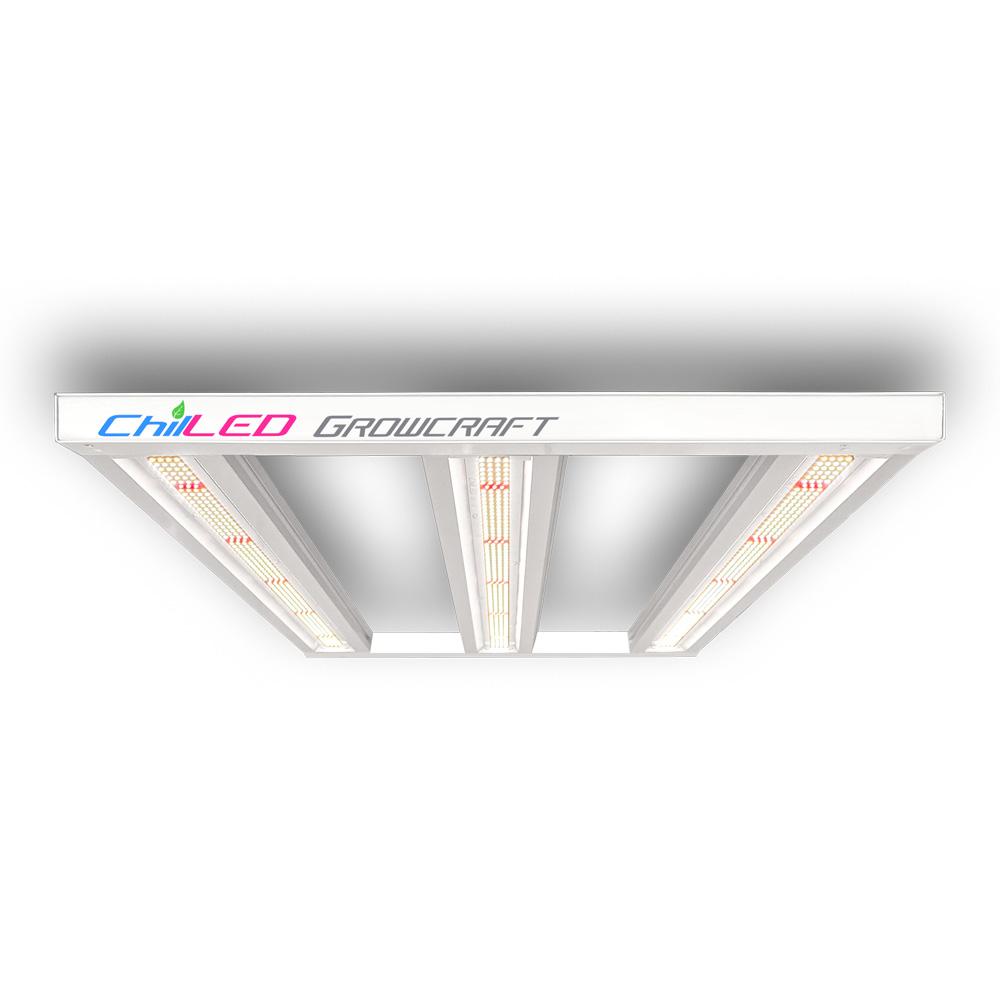

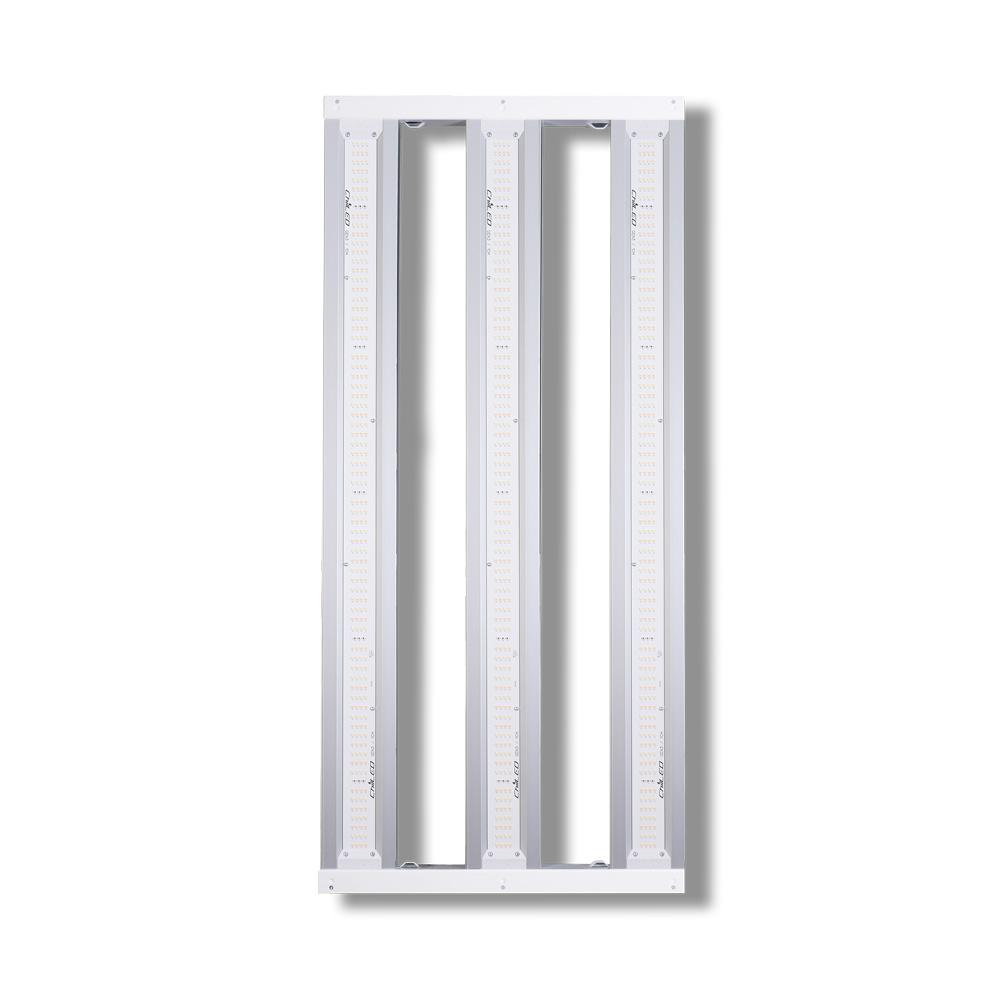

Innovative Rugged LED Light Bar System – Large footprint for even canopy coverage
-
Slim Profile Passive Cooled Design – Only 1.375in thick & no moving parts
-
Growcraft Yield Max Spectrum – 3rd Gen 2020 technology – maximum results
-
Linear Power Control – 33W – 330W dimmable range
-
Light Engine Efficacy – 3.26 μmole/J – 2.9 μmole/J
-
Full System Efficacy – 3.1 μmole/J – 2.76 μmole/J
-
Made In The USA – Finest quality materials and workmanship
- 3 Year Standard Warranty

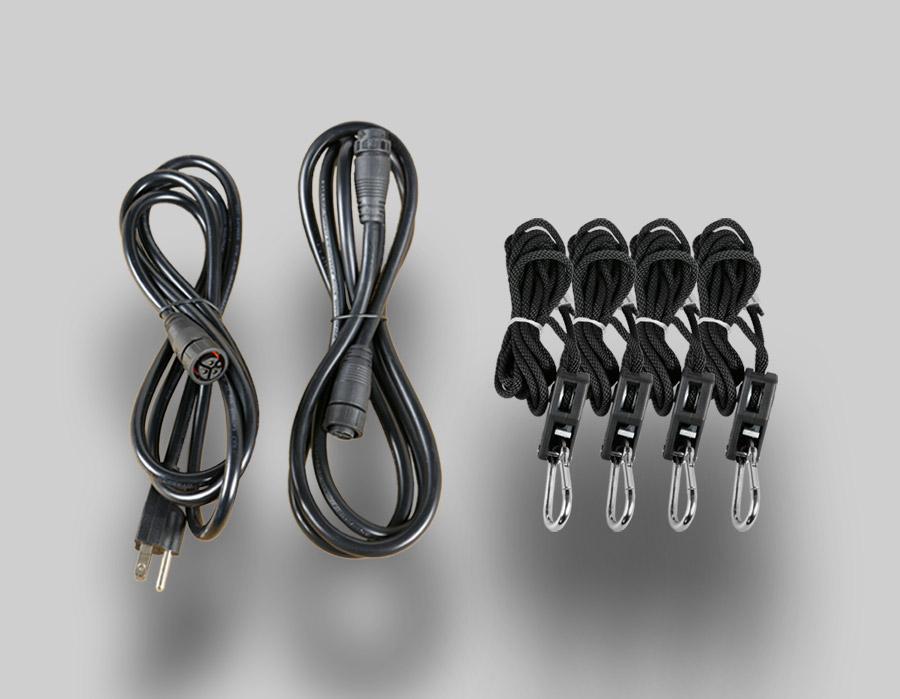

Includes
- 1 x Fully Assembled Fixture (this product)

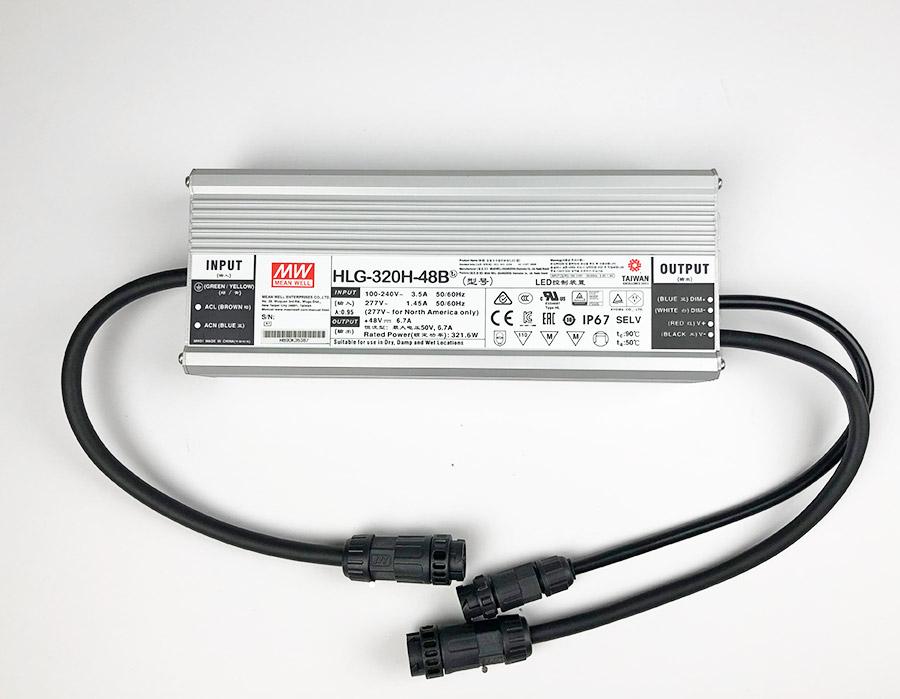

- 1 x Push-Lock Mean Well HLG-320H-48B LED Driver
- 1 x Push Lock 7ft Driver Extension Cable
- 1 x Push Lock AC Power Cord (Your Choice of AC Plug)
- 1 x Push-Lock Dimmer Pot
- 2 x 3/16in Rope Ratchet – Metal Mechanism – 2 Pack
Spectrum
PAR
2’x4′ Canopy Area – 12 in Hanging Height
Average PPFD – 1079 µmol/(m2s)
2’x4′ Canopy Area – 18 in Hanging Height
Average PPFD – 894 µmol/(m2s)
2’x4′ Canopy Area – 24 in Hanging Height
Average PPFD – 845 µmol/(m2s)
Comparison
Specs
Input Power Draw: 330W
Input Voltage Range: 90-305 VAC
120 VAC Current Draw: 2.8 Amps
208 VAC Current Draw: 1.6 Amps
240 VAC Current Draw: 1.4 Amps
277 VAC Current Draw: 1.2 Amps
Power Driver: Mean Well HLG-320H-48B
AC Power Cord Length: 6.5 ft
DC Extension Cord Length: 7 ft
Dimming Range: 10-100%
Light Engine Efficacy: 3.26 μmole/J – 2.9 μmole/J
Power Driver Efficiency: 95% @ 230 VAC
Full System Efficacy: 3.1 μmole/J – 2.76 μmole/J
Operating Temperature Range: 41°F – 95°F | 5°C – 35°C
Operating Humidity Range: 10 – 90% Non-Condensing
Generated Heat Load: 1,126 BTU/Hour
Minimum Head Space Above Fixture: 6 in
Recommended Hanging Height: 12-24 in
Coverage Area: 2 x 4 ft
Start Slow: Growcraft lights have VERY high light output and unless your plants are already acclimated to high light intensity, it is best to start slow with the light hanging high and possibly also dimmed. Then monitor plant reaction over a few days and slowly adjust as needed.
Fixture Dimensions: 42.5 in x 19.5 in x 1.375 in
Fixture Weight: 17 Lbs
