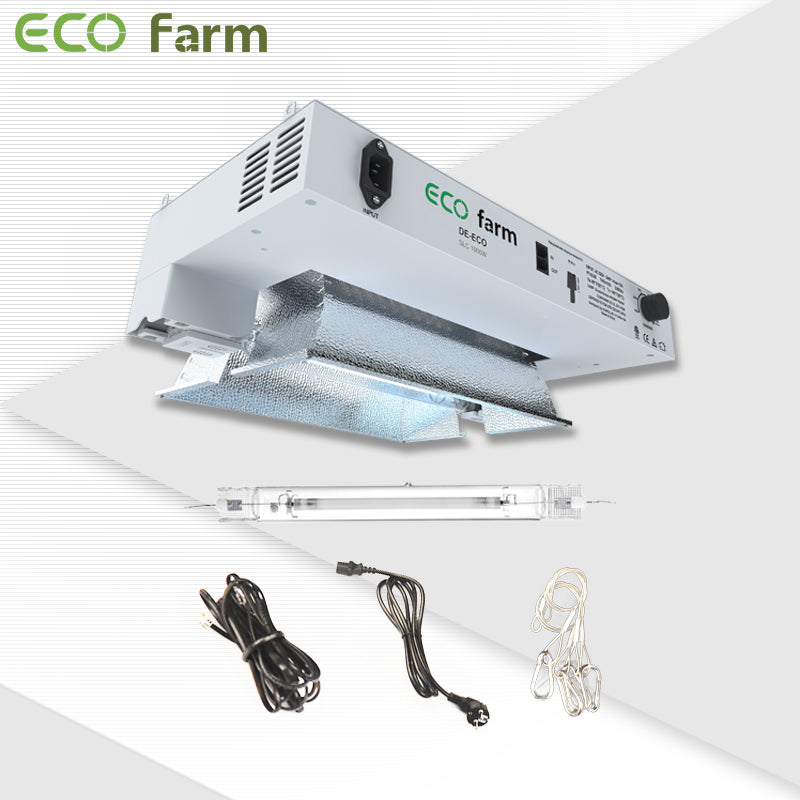

Eco Farm 1000W HPS/MH grow light kit runs significantly cooler compared to conventional lighting setups and do not need to be cooled with ducting and fan, they can simply be air cooled and are really energy efficient.

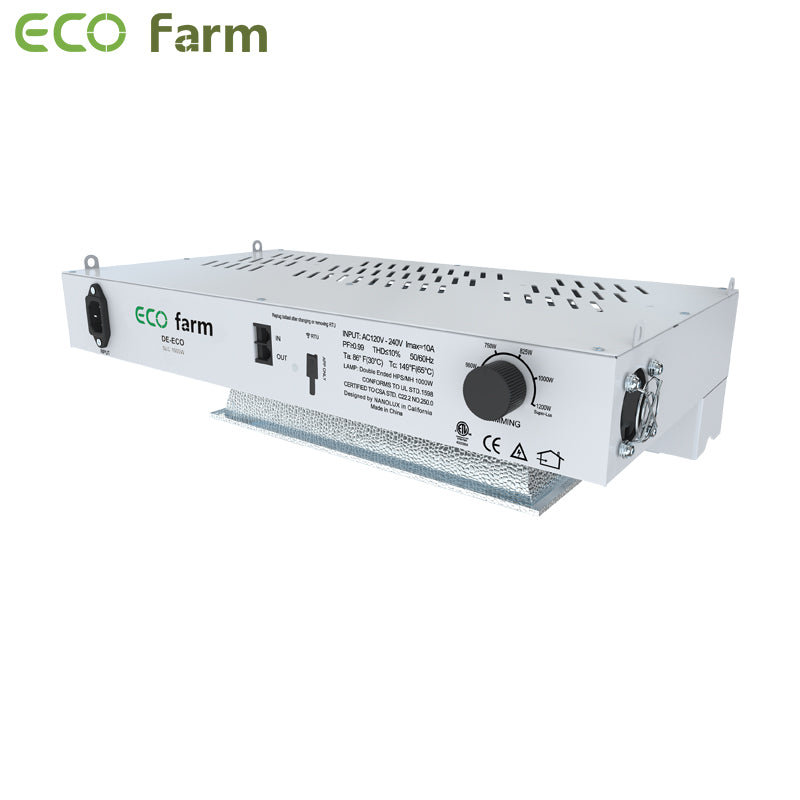

HIGH-TECH dimmable ballast. Cutting-edge adjustable ballast features advanced low frequency Square-Wave technology for high efficiency, reliability and no electromagnetic interference.

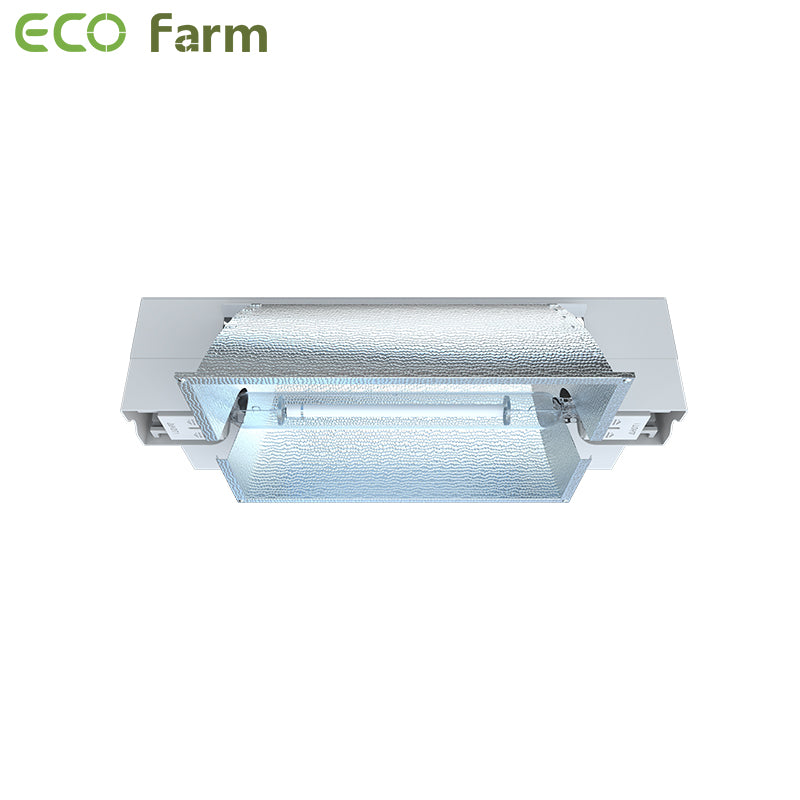

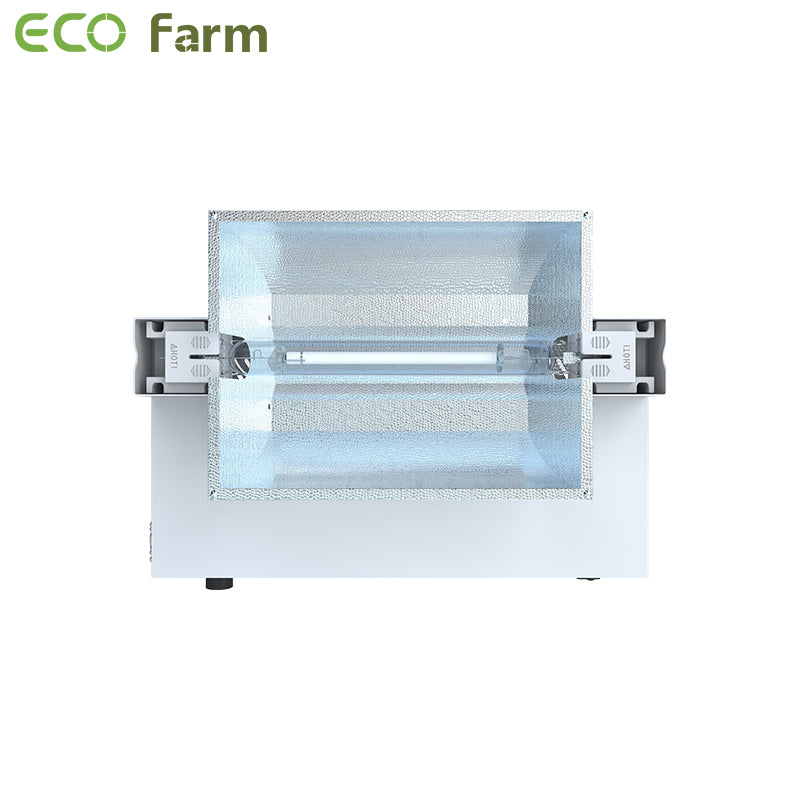

Sturdy reflective hood is made of aluminum rated at 98% reflectivity; the contour design and texturing eliminates hot spots and dead zones.
| Model | 1000W | |
| Input Voltage | AC120V-240V | |
| Output Voltage | 200V-300V | |
| Input Frequency | 50/60Hz | |
| Output Power | 1200W Max | |
| Power Factor | ≥0.99 | |
| Crest Factor | ≤1.7 | |
| THD | ≤10% | |
| Dimming | NCCS-RTU/0-10V | |
| Strike Lamp | Double Ended Lamp | |
| Size (L*W*H) | 455*336*136mm 17.9*13.2*5.4inch |
|
| Weight |
5.3 kgs 11.7 lbs |
|
TO INSTALL A NEW LAMP:
DISCONNECT FROM MAINS FIRST
Make sure the lamp is clean, wear cotton gloves and clean the lamp after installation with a dry soft cloth. Never use detergents to clean a lamp, use pure alcohol or whip clean with a dry clean soft cloth.
Make sure the end wires are straight.
Open the lamp holders by sliding them outward. Press the lamp in the fitting until the metal springs hold the lamp, with the glass vacuum seal pointed downward.
Close the lamp holders by sliding them inward. Wipe the lamp with a clean soft cloth.
Be sure not to touch the reflective material of the reflector with your bare hands.
TO TAKE OUT A LAMP:
DISCONNECT THE MAINS FIRST
Open the lamp holders by sliding them outward. The lamp is held by a metal spring at each side. It is recommended to hold the lamp
while opening the lamp holders to prevent the lamp from falling.
MORE ADVANTAGES FOR SMART LIGHTING CONTROLLER
Operating more secure and easily with touch screen. Maxium of 120 ballasts can be controlled.
Smart dimming has a function similar to sunlight.
Turn off the device automatically with time and temperature setting.
