The HM660 Series, with an increased lifespan over traditional grow light sources, cultivates healthier, happier plants.

A high-PPFD and PAR indicates high efficacy, or light output produced per expenditure of unit of power. Generating about 50% more in energy savings over traditional HID and HPS light sources, the HM660 gives you meaningful savings over time. Will not produce the same results without CO2 supplementation.

The HM660 lighting system is a complete, pre-assembled LED grow light that lowers installation time with a wide range of wiring techniques and connectors. The HM660 Series system runs cool thanks to a passive cooling thermal management system, meaning your lighting systems last longer while retaining high light output levels. A longer lifespan means you can grow crops for many years without needing to replace the lighting system, reducing costs.

Features

Compatible with TrolMaster system+Adapter LMA-14
Added one extension bar on each side to cover the 3’ x 6’ or 4’ x 6’ grow tray
Total of 3500 pcs LED diodes on the fixture including deep red led diode

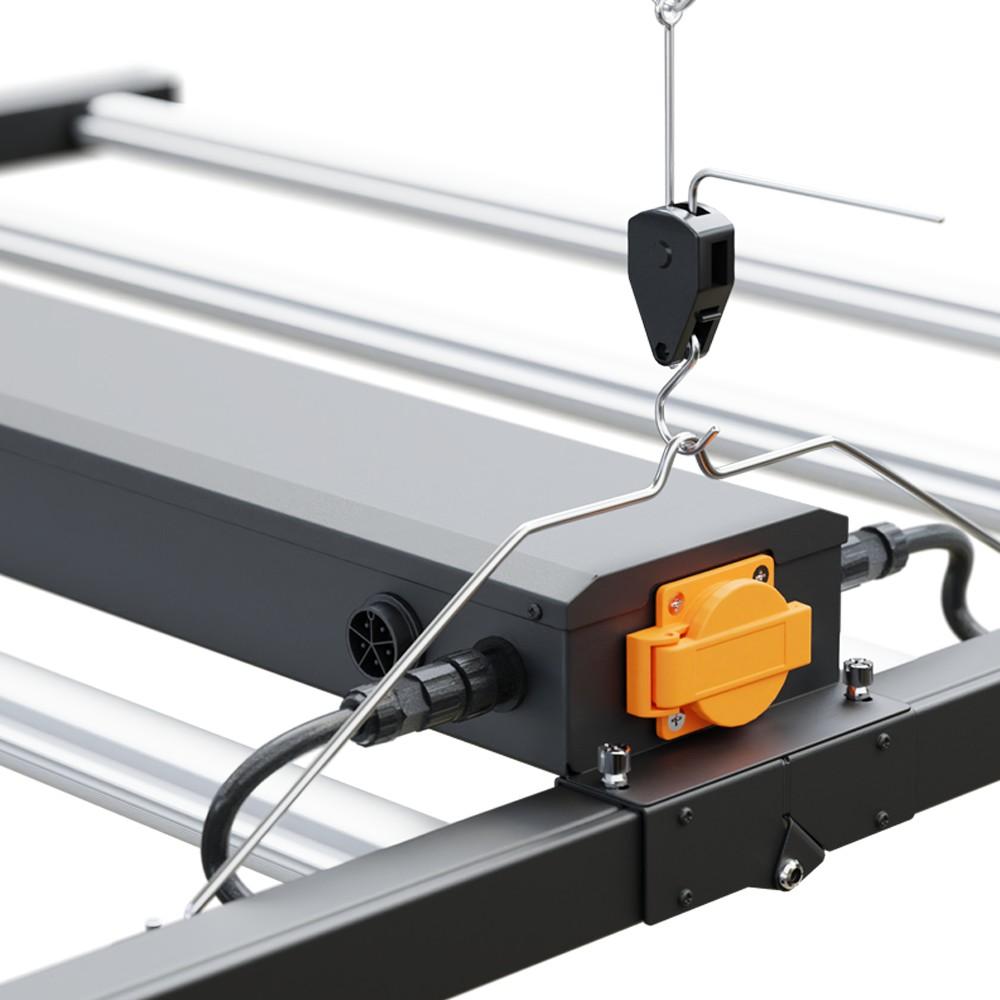

Come with 120-277V AC output quick access outlet on the fixture
Foldable design, easy installation
Up to 30% more energy-saving than traditional HID and HPS
Optimized spectrum proved by growers for veg and flowering
Superior delivered PPF and PAR exceeding 1000W HPS
Scientifically engineered to maximize photosynthesis, growth, and yield

WATTAGE 660W (Boost up to 720W)
INPUT POWER 120V-277V
FREQUENCY 50/60Hz
CONTROL 0-10V dimming (0-100%), Wireless
POWER FACTOR 0.9
THD 20%
THERMAL MANAGEMENT Passive
WORKING TEMPERATURE -40ºF ~ 122ºF
IP RATING IP44, Suitable for dry & damp locations
WARRANTY 7 year limited
HEAT LOAD PER FIXTURE 2148 BTU
PERFORMANCE DATA 660W (100%) @ 12"H
PPF 1716 μmol/s
PPFD 1188 μmol/m2/s
PPE 2.6 μmol/J
