Slim 480H Dimmable LED Grow Light 480w (120 Degree) 3500k

Slim 480H

Its time to Experience LED Grow Lights in a new way.

Coverage Footprint:

Flower: Veg:

4' x 4' area (1.2m x 1.2m) 4' x 4' area (Up to 7' x 7' area)

Max: 5' x 5' area (1.5m x 1.5m)

(4' x 4' Grow Tent / 1.2m x 1.2m)

Hanging Height :

Flower: 8"-24"

Pro Tips: Its always best to set the light up higher and let the plants grow up into the light.

Recommended Dimmer Settings & Hanging Height:

Seedling: 36"+ / 25% Power

Vegetative: 48" + / 50% Power (or 24" @ 25% Power)

Flowering:

Weeks 1-3 - @24" (.6m) / 50% Power

Weeks 4-6 @18" (.45m) - 24" / 75% Power

Weeks 7-8 @18" (.45m) - 24" / 100% Power

Weeks 9-10 @8" - 16" (.4m) / 100% Power

Slim 480H Components:

LEDs: 2,016 Total LEDs

White LEDs:

- 1,962 Top Bin Samsung LM301H LEDs

Bloom Enhancers:

- 36 CREE XPE Deep Red LEDs

- 18 CREE XPE Royal Blue LEDs

Each Light Bar (6 Light Bars total @80w each)

336 Samsung LM301H LEDs (Mixed White Blend 3000k & 4000k)

3 CREE XPE 460nm Royal Blue LEDs

6 CREE XPE 660nm Deep Red LEDs

Significantly Overbuilt extruded bar Aluminum Heatsink

Optics :

Samsung LM301H LEDS: 120 Degree Wide Beam Lens

CREE XPE LEDs: 120 Degree Wide Beam Lens

Driver: Meanwell Dimmable Driver - 480 watt - HLG 480H- 48B

Spectrum: Full Spectrum White Light 3500k (Mixed White Light LEDs)

+ 660nm Deep RED + 450nm Royal Blue

Description:

Kelvin: 3500K DayLight White

IP Rating: IP65 Waterproof

LEDs Per Watt: 4.2

PPFD @10": Extremely High (coming soon)

ppf/w : 3.0 umols/ J

Actual Power Draw: 480 watts max

Grams Per Watt: up to 2.2

Yield: Up to 1056 grams / 37.7 oz / up to 2.35lbs

Lifetime: 100,000 Hours+

Warranty: 10 Years full warranty - Lifetime warranty on Meanwell Driver

Light Fixture: 42" x 41" Vertical Farming Aluminum Fixture - folds in half

Cables: 6 Foot attached power cord

Plug: USA, CANADA, EURO, Commercial etc.

Dimming: Central Mounted Dimmer 25%, 50%, 75% & 100% settings

Master Controller: Fully Compatible

Fixture Dimensions: 41" x 42" x 4" (Same Size as Slim600h)

Fixture Weight: 28 lbs (With Driver top mounted)

Shipping Weight: 34 lbs

Hanger: Comes with 4 adjustable rope ratchet hangers.

Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.

*International Shipments may require Taxes & Duties. Contact us for a quote!

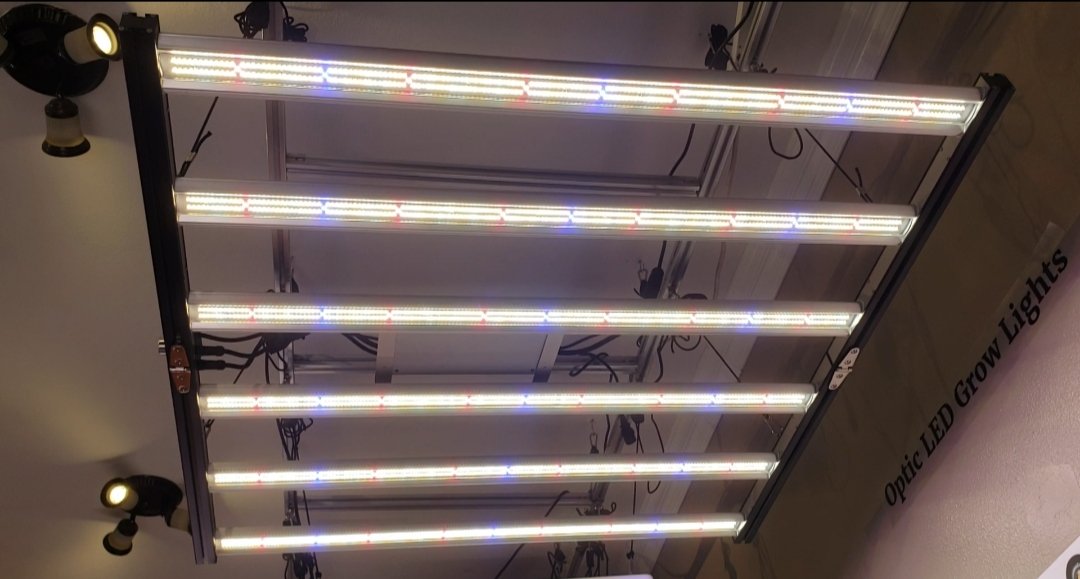

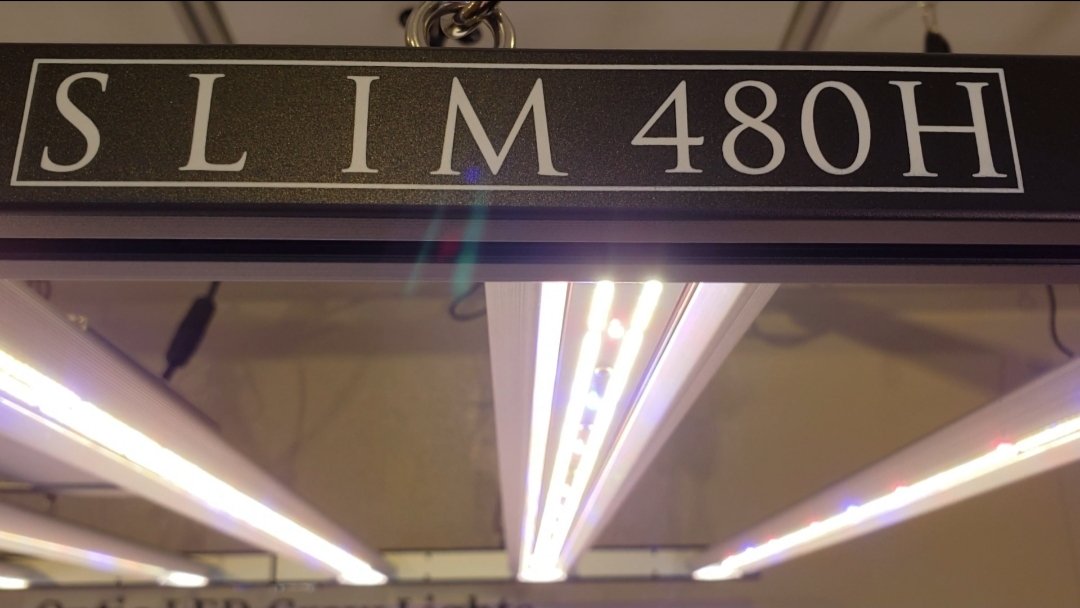

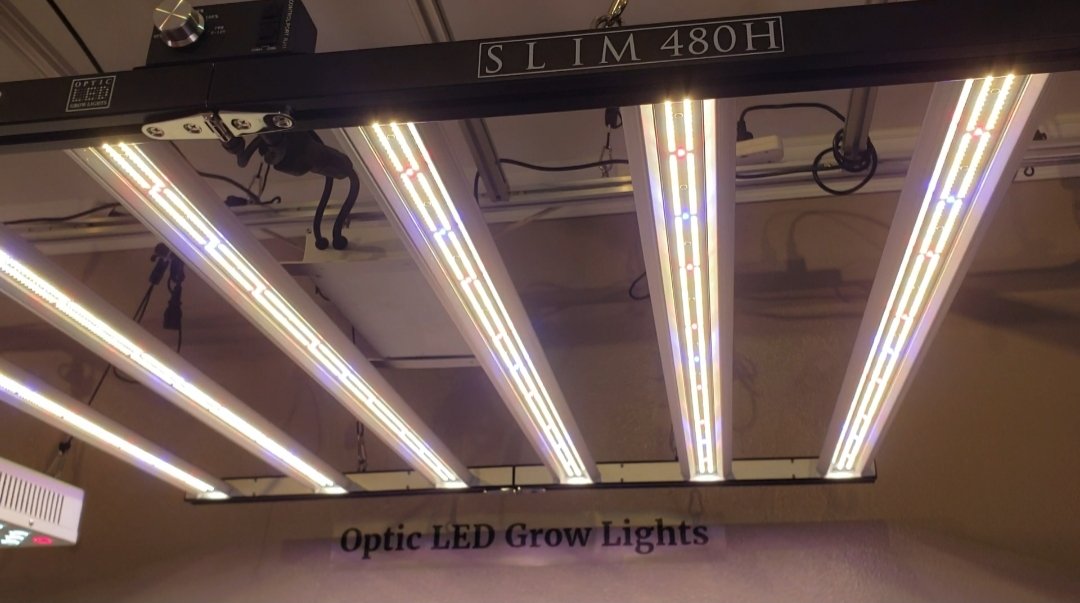

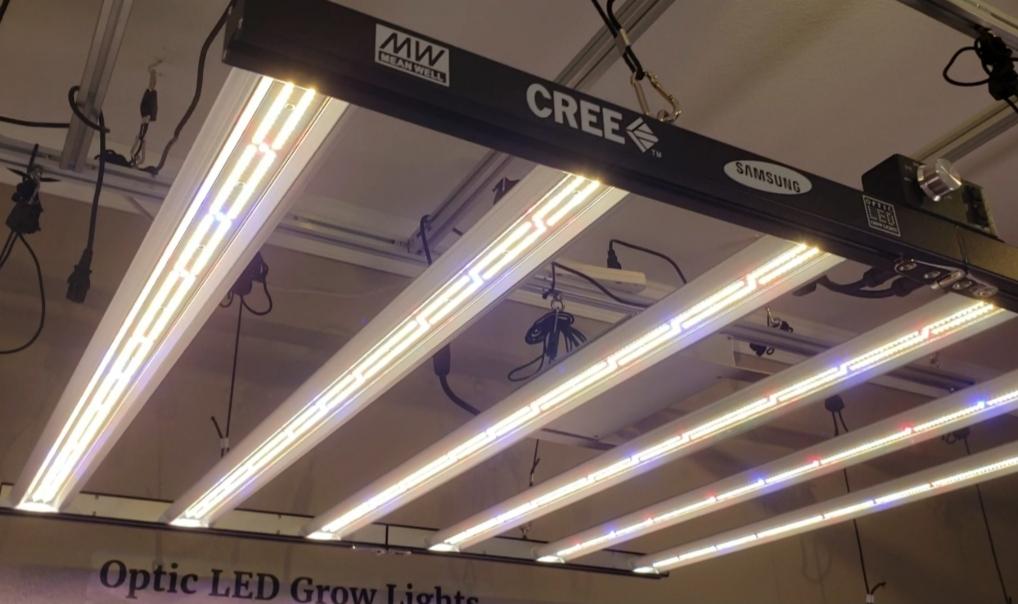

OpticLED Showroom - See the Slim480h Pictures
