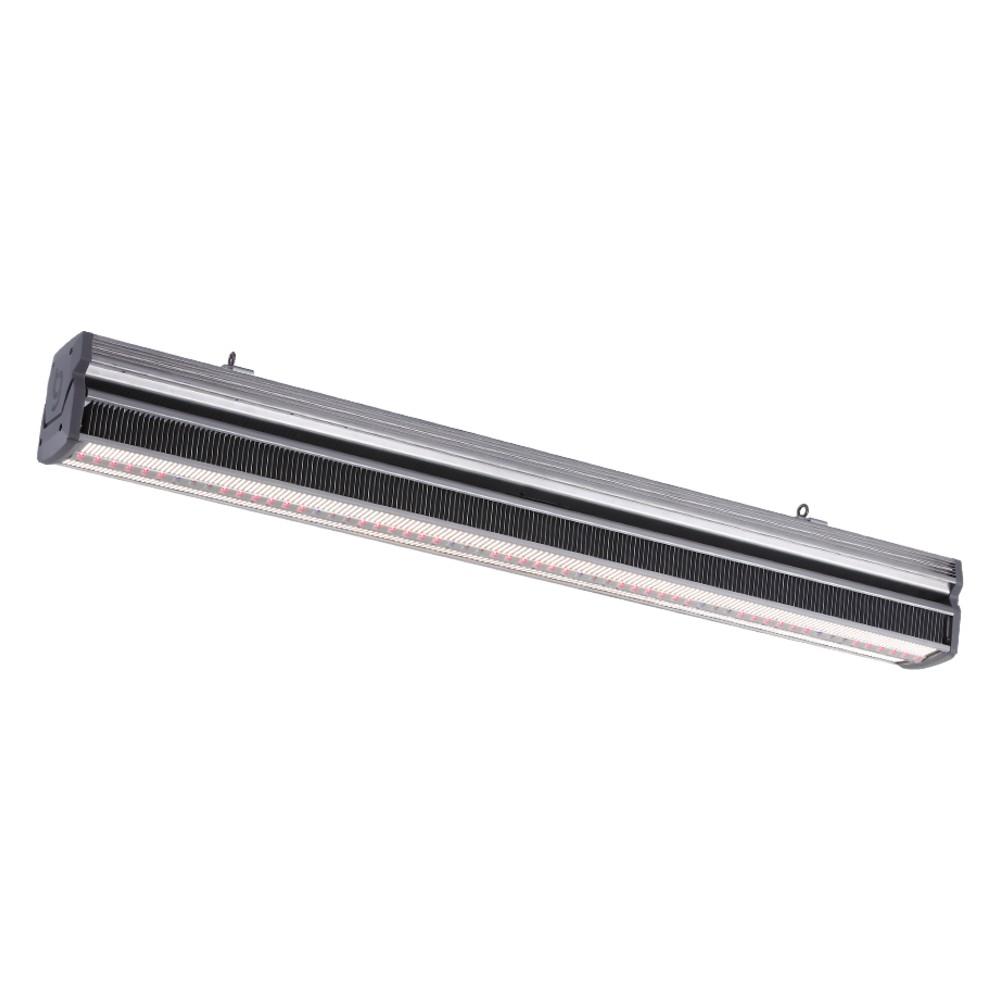

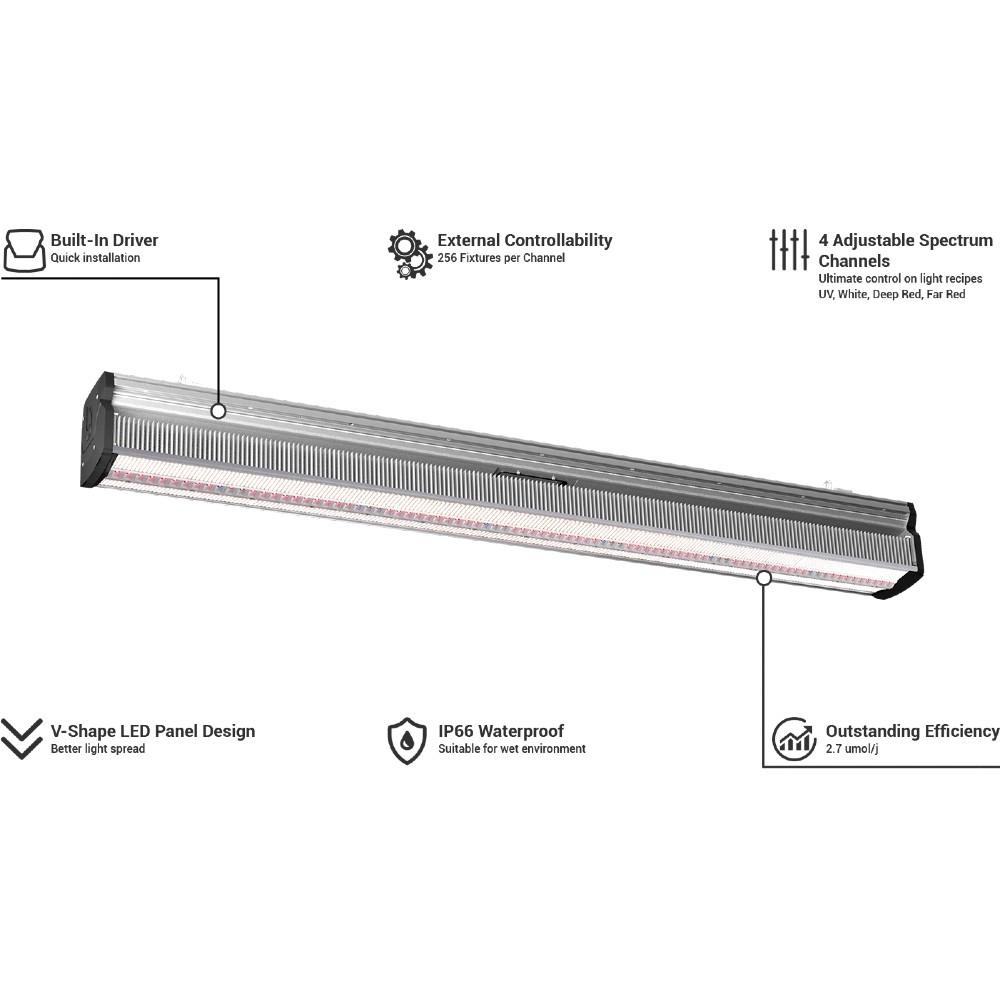

Model-I Plus is designed specifically for greenhouse and single-level indoor cultivation. The fixture is a high-performance LED grow light for horticulture cultivation. The compact design with a built-in driver balances the energy efficiency and human work environment. The innovative V-shape design on the LED panel improves light distribution, which lowers the height from the canopy needed as it reduces light energy loss. Four spectrum channels including UV, White, Deep Red, and Far Red are fully controllable to dial in the exact recipe of light your plants need (only available on TrolMaster HCS-2/3 controller). It provides great external control ability and allows up to 256 fixtures per channel with outstanding efficiency at 2.7 umol/J.
The Model-I Plus is only compatible with TrolMaster Hydro-X control systems. Up to 256 fixtures can be controlled in the same daisy chain channel via an LMA-T adaptor. While connecting to the original HCS-1 controller, the Full Spectrum channel and the Far Red channel can be controlled independently. This will allow the Far Red channel to be turned on for 10-15 mins after light off to help to finish the flowering cycle faster. While connecting to the HCS-2 controller, the same function can be achieved and an advanced spectrum tuning function is available for creating special light recipes.
Spectrum
Adjustable Spectrum
Ultimate control on UV, White, Deep Red, and Far Red spectrums for creating special light recipes.
Full Spectrum
Deep Red Spectrum
UV Spectrum
Far Red Spectrum
PAR
Comparison Chart
Specs
Input Power: 720W
Power Factor: >90%
Input Voltage: Autosensing 100-277V
Amp Draw:
- 120V- 6.23A
- 240V- 3.097A
- 277V- 2.71A
PPF: 1944 umol/s
Efficacy: 2.7 umol/J
BTU: 2456.74 BTU/h
Lifetime: L90: >54,000 hours
Adjustable Spectrum: Yes (4 channels)
Dimmable: Yes
Coverage area: Up to 5'x5'
Mounting Height: >30" above canopy
External Controllability: 256 fixture/channel
Group Control: Yes
Certification: IP66 waterproof

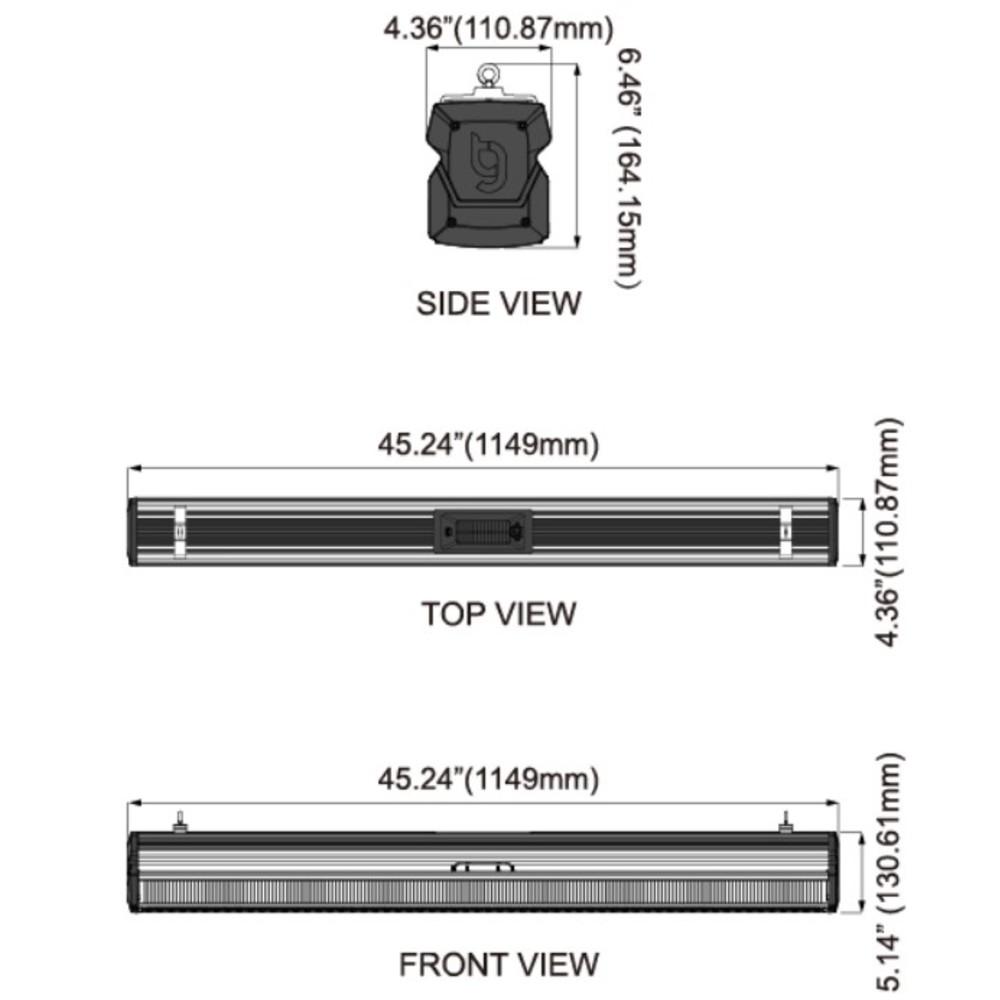

Dimensions: 45.24″L 4.36″W 6.46″H
Weight: 22.33 lbs
Warranty: 5 years standard warranty
Recommended For: Grow Room, Grow Tent, Greenhouse, Single Level Indoor Cultivation
