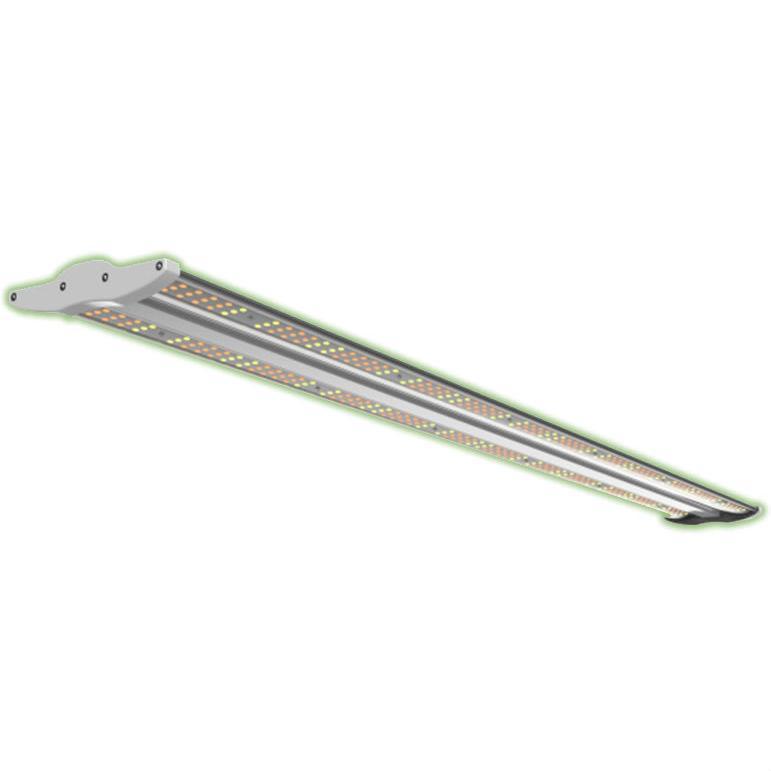

The TotalGrow Stratum 40W LED Grow Bar is designed and refined to maximize yields, space and versatility while minimizing costs. Ideal for clones, veg growth, microgreens, leafy greens, herbs, succulents, side lighting, and more!
The spectrum and size are ideal for low/no-sunlight growing in virtually any vertical farm, growth chamber, propagation system, tower garden and more. Exceptional efficiencies and light delivery potential, along with long, low maintenance lifespans provide long-term sustainability.
This plug-and-play solution is simple to implement, low on upfront and ongoing costs, and makes it possible to sustainably grow high-quality plants year-round over a very long lifetime.
The 40W LED grow bar is ETL certified for commercial growing and can be provided with custom power cord wire harnesses for simple, low-cost multi-light installations. Wiring harnesses customized to match your setup can be requested for multi-light setups – free of charge.”
Each grow bar unit includes a 7' power cord and mounting brackets.
Note: These fixtures can provide up to 500 µmol/m2/s if packed tightly into a setup, though a typical installation is 12” spacing between bars for about 200-225 µmol/m2/s.
Features
- Exceptionally thin profile to maximize space
- Full spectrum and modular design for exceptional versatility
- Broad panel/bar hybrid for improved uniformity and penetration
- Simple mounting and electrical installation to save time and costs
Spectrum
Usage Guidelines
Specs
True wattage draw: 40 watts
Fluorescent equivalent: About 80 watts
LEDs: Full-spectrum white, 660nm red
Spectrum: Full-spectrum for vegetative growth, can be used for low to mid-intensity flowering
PAR Efficacy: 2.3 umol/j
Light Output: 92 umol/s
Service Life: 50,000 hours
Daisy-chain: 1-80 units
Coverage area and hanging height: 3" or more above plants
Thermal management: Passive diffusion
Input voltage: 100-277 VAC
Input Current at 115 / 230 / 277 VAC: 0.35 / 0.17 / 0.14 A
Power frequency: 50 ~ 60Hz
Product weight: 2.5 lbs
Cord Length: 7'
Plug Type: Nema 5-15 120V plug

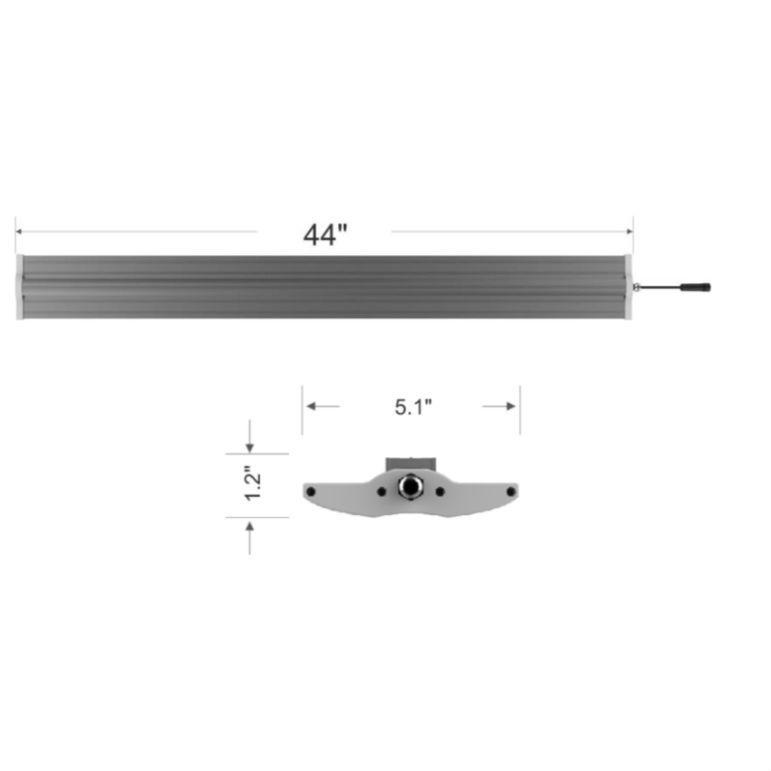

Dimensions: 45" (L) x 5.1" (H) x 1.2" (W)
Additional details: ETL certified (for commercial grows); IP65 wet-rated
Recommended for:
- Clones
- Veg
- Microgreens
- Leafy greens
- Herbs
- Succulents
- Side lighting / Supplemental lighting
- Low/no-sunlight growing
- Vertical farms
- Growth chambers
- Propagation systems
- Tower gardens
Manufacturer's warranty: 5 years
